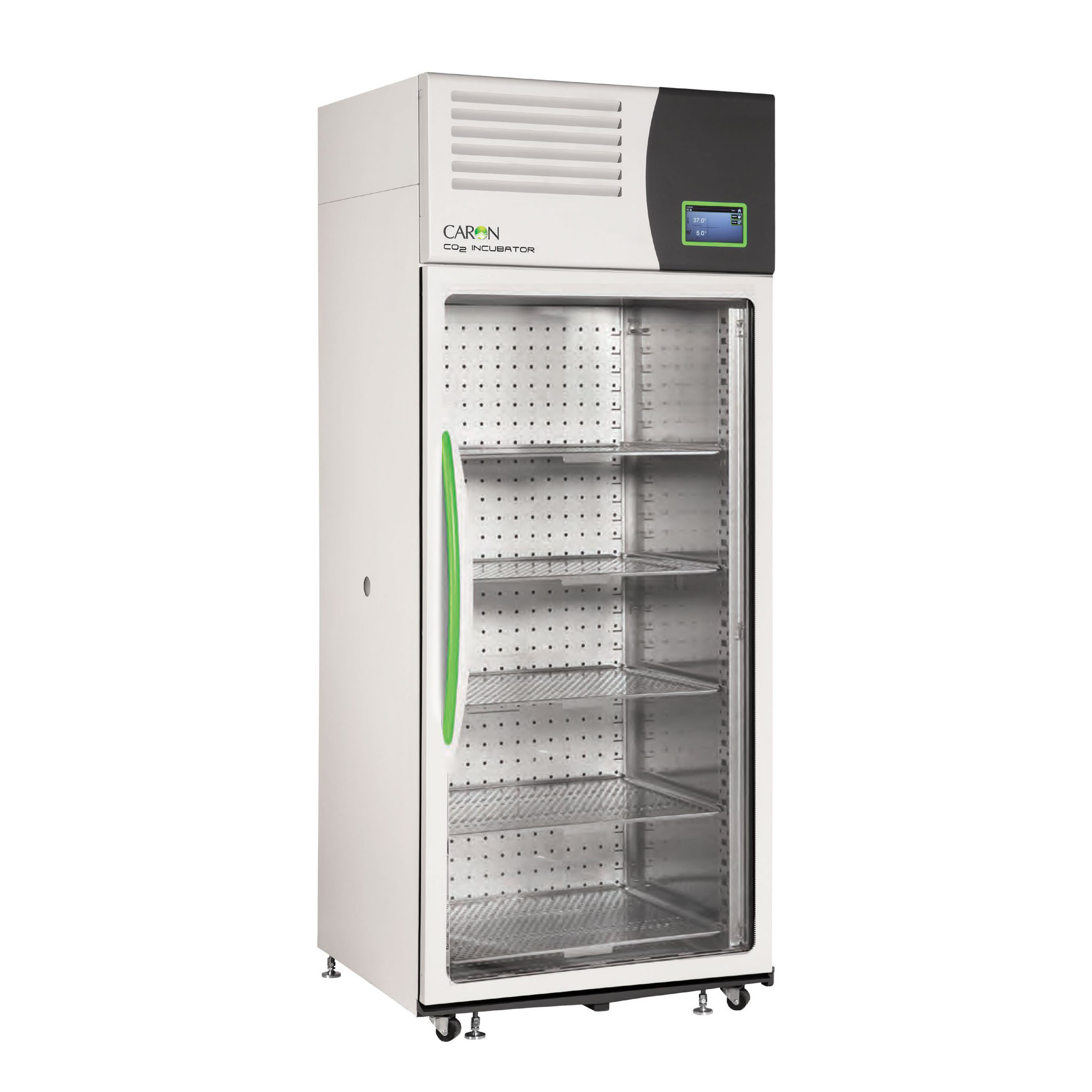

Caron 7400-33 Production Scale CO2 Incubator

Quote

The Caron 7400-33 Production Scale CO2 Incubator delivers maximum culture capacity in a 33 cubic foot (934 liter) chamber, providing pharmaceutical researchers and biomanufacturers with over five times the culture space of standard benchtop incubators for high-throughput vaccine production, monoclonal antibody manufacturing, and large-scale cell therapy development. This flagship production scale model maintains the same laboratory footprint as a traditional double-stack configuration while accommodating extensive arrays of T-flasks, multi-layer cell factories, CellSTACKs, bioreactor bags, and roller bottles across up to 31 perforated stainless steel shelves (5 included standard). Engineered specifically for cGMP pharmaceutical facilities and cleanroom environments, the 7400-33 features patented two-hour dry hydrogen peroxide sterilization achieving 12-log contamination reduction without post-cycle cleanup, adaptable refrigeration technology that automatically compensates for internal heat loads, and optional cleanroom-ready construction with 316 stainless steel exteriors designed for aggressive decontamination protocols required in regulated manufacturing settings.

Advanced environmental control systems maintain ultra-stable conditions critical for sensitive primary cells, stem cell cultures, and engineered tissue constructs through drift-resistant RTD temperature sensing with ±0.1°C accuracy, infrared CO2 detection providing ±0.1% gas concentration control with rapid recovery after door access, and the contamination-resistant gVapor controlled humidity system delivering precise moisture management from ambient to 95% RH without traditional water pan humidification that creates microbial growth risks. The tool-free interior disassembles in under three minutes for rapid cleaning between experimental runs, while the intuitive glove-friendly touchscreen interface provides real-time monitoring of temperature, CO2, and humidity parameters with configurable status alerts, built-in preventive maintenance reminders, and comprehensive data logging capabilities essential for regulatory compliance documentation. Available in free-standing or space-saving in-wall installation configurations, the 7400-33 adapts to diverse pharmaceutical laboratory layouts while facility-friendly standard plug-in electrical connections (115V or 208/230V options) and low power consumption minimize infrastructure modifications and ongoing operational costs.

Whether conducting large-scale CAR-T cell expansion for clinical trials, manufacturing commercial quantities of therapeutic antibodies, developing next-generation vaccine candidates, or scaling personalized medicine protocols from discovery through clinical application, the Caron 7400-33 provides the robust contamination prevention, maximum throughput capacity, and comprehensive regulatory compliance features demanded by modern biopharmaceutical production environments. The modular shelving system accommodates evolving culture vessel configurations while optional accessories including one-handed door latches with integral locks, additional perforated or solid shelving variants, condensate recirculation systems, and data acquisition systems for 21 CFR Part 11 compliance ensure this production scale incubator adapts to changing research protocols and manufacturing requirements. Comprehensive service support encompasses professional installation planning for larger chambers, IQ/OQ validation services meeting pharmaceutical regulatory standards, calibration programs maintaining measurement accuracy, operator training ensuring optimal equipment utilization, and preventive maintenance contracts maximizing equipment reliability throughout the product lifecycle.

Description

Caron 7400-33 CO2 Incubator Features and Benefits

  • Maximum 33 Cubic Foot Capacity provides over 5x the culture space of benchtop incubators, delivering the highest throughput for pharmaceutical production and large-scale research applications
  • Extended 31-Shelf Maximum Configuration accommodates extensive culture vessel arrays including T-flasks, CellSTACKs, cell factories, and bioreactor bags with 5 perforated stainless steel shelves included standard
  • Adaptable Refrigeration System automatically compensates for internal heat loads from equipment and high-density culture configurations, maintaining precise temperature stability throughout the expanded chamber
  • Two-Hour Dry H2O2 Sterilization delivers rapid validatable 12-log contamination reduction across the full 33 cu ft chamber with no post-cycle cleanup, reassembly, or water removal required
  • Cleanroom-Ready Installation Options include 316 stainless steel exterior upgrade, HEPA-filtered air supply, and in-wall mounting for cGMP pharmaceutical manufacturing compliance and space optimization
  • Tool-Free Interior Disassembly enables complete component removal in under 3 minutes despite larger chamber size, facilitating rapid cleaning and contamination prevention between production runs
  • gVapor Controlled Humidity Technology eliminates contamination-prone water pans while delivering precise moisture control from ambient to 95% RH with ±3% accuracy even in this larger chamber volume
  • Infrared CO2 Detection System maintains drift-resistant gas concentration control with ±0.1% accuracy and rapid chamber-wide recovery after door access for optimal large-scale culture conditions
  • Professional Installation Support includes planning services for larger chamber placement, facility integration guidance, and optional in-wall installation for maximum space utilization in pharmaceutical facilities
  • Scalable Production Platform bridges the gap between research-scale and manufacturing-scale cell culture, supporting technology transfer, process validation, and production capacity expansion

Caron 7400-33 Production Scale CO2 Incubator Technical Specifications

Model Number 7400-33
Product Category Production Scale CO2 Incubator – Maximum Capacity
Chamber Capacity 33 cubic feet (934 liters)
Capacity vs. Benchtop Over 5x the culture space of standard benchtop incubators
Door Configuration Single-door reach-in with full-height access
Interior Dimensions 32″ W x 27″ D x 65.7″ H (81.3cm x 68.6cm x 166.9cm)
Exterior Dimensions 35.5″ W x 33.3″ D x 90.1″ H (90.2cm x 84.6cm x 228.9cm)
Interior Construction Type 304 Stainless Steel with 2B Finish (solid construction)
Exterior Construction Powder Coated Cold Rolled Steel (316 SS cleanroom upgrade available)
Standard Shelves Included 5 perforated stainless steel shelves
Maximum Shelf Capacity 31 shelves total (highest capacity in series)
Shelf Construction Perforated Type 304 Stainless Steel
Shelf Dimensions 29.25″ W x 24.45″ D (74.3cm x 62.1cm)
Shipping Weight 775 lbs (1,050 lbs with export shipping crate)
Temperature Range 10°C above ambient to 60°C
Temperature Control Accuracy ±0.1°C throughout 33 cu ft chamber
Temperature Uniformity ±0.3°C across entire chamber volume
Temperature Sensor Type RTD (Resistance Temperature Detector) – drift-resistant
Refrigeration System Adaptable refrigeration with automatic heat load compensation
Heat Load Management Automatically adjusts for high-density culture configurations and equipment
CO2 Range 0-20% adjustable for diverse cell culture requirements
CO2 Control Accuracy ±0.1% CO2 throughout chamber
CO2 Sensor Type Infrared (IR) CO2 Sensor – drift-resistant with rapid recovery
CO2 Recovery Time Rapid chamber-wide equilibration after door openings
Humidity Range (Elevated) Up to 95% RH at 37°C
Controlled Humidity Range Ambient to 95% RH
Humidity Control Accuracy ±3% RH even in large chamber volume
Humidity System gVapor controlled humidity vapor delivery (no water pans)
Sterilization Method (Optional) Patented dry hydrogen peroxide (H2O2) cycle
Sterilization Cycle Time 2 hours for full 33 cu ft chamber
Sterilization Efficacy 12-log reduction (validatable across entire chamber)
Post-Sterilization Cleanup None required (no reassembly or wipe-down)
Interior Disassembly Time Under 3 minutes (tool-free despite larger size)
User Interface Digital touchscreen with glove-friendly operation
Navigation System Breadcrumb trail menu navigation
Monitoring Features Real-time temperature, CO2, and humidity display with data logging
Alert System Configurable alarms for temperature, CO2, humidity, door ajar, power failure
Preventive Maintenance Built-in reminders for filter changes and calibration schedules
Door Features Glass door with optional one-handed latch and integral lock
Electrical Outlets Standard interior electrical outlets for auxiliary equipment
Access Ports Multiple access ports for cables, tubing, and instrumentation
Mobility Features Heavy-duty casters with leveling feet for stability
Installation Options Free-standing or in-wall configuration
Installation Planning Professional support available for larger chamber placement
Cleanroom Compatibility Cleanroom-ready upgrade package available
Cleanroom Exterior Option 316 Stainless Steel for aggressive cleaning protocols
Power Requirements (Model 33-1) 115V, 60Hz, 12.9A
Power Requirements (Model 33-2) 208/230V, 60Hz, 6.5A
Power Requirements (Model 33-3) 230V, 50Hz, 6.5A (International)
Energy Efficiency Low power consumption despite maximum capacity
Electrical Connection Standard plug-in (facility-friendly integration)
Primary Applications Production-scale cell culture, vaccine production, antibody manufacturing, cell therapy, gene therapy, biopharmaceutical production
Culture Vessel Compatibility T-flasks, multi-layer flasks, CellSTACKs, cell factories, bioreactor bags, roller bottles, Petri dishes, culture plates
Maximum Culture Throughput Highest capacity in production scale series for maximum experimental throughput
Regulatory Compliance cGMP-ready construction, validatable sterilization, 21 CFR Part 11 compatible (with optional data systems)
Data Logging Optional data acquisition systems available for compliance documentation
Validation Support IQ/OQ validation services available for pharmaceutical compliance
Manufacturer Caron Scientific
Warranty Standard manufacturer warranty included
Service Support Installation, IQ/OQ validation, calibration, training, preventive maintenance contracts available
Related Models 7400-25 (25 cu ft), 7401-25 (shaker-ready 25 cu ft), 7401-33 (shaker-ready 33 cu ft)
Key Differentiator Maximum production capacity in standard reach-in configuration

2 Years
