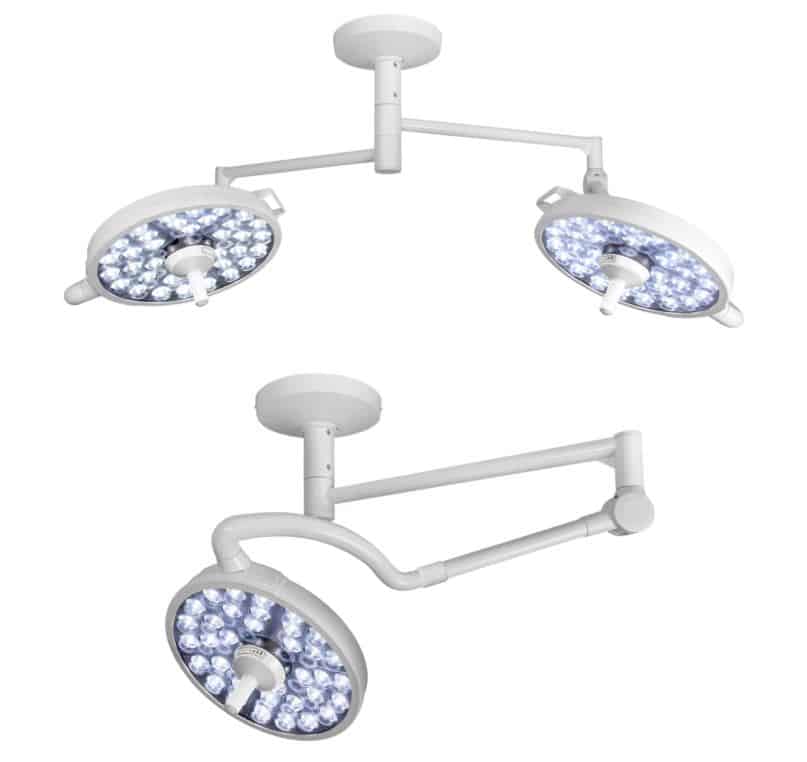

Description
• Affordable surgical lighting system offers longevity and flexibility.
• Large diameter LED array with exceptional shadow control.
• Five-stage dimming for a wide range of surgical procedures.
• Maximum output rated at 100,000 Lux.
• 4,300 Kelvin bright white illumination.
• Color Rendering Index: 97.
• Long-life LED’s rated at 50,000 hours.
• Dimming and on/off switch controlled by autoclavable handle.
• Light array emits virtually no radiated heat.
• Available in a wide array of mounting options
Optical Specifications
• Number of LED’s: 36
• Output: 100,000 Lux @ 39.4 in (1 m)
• CCT: 4,300° K
• CRI: 97
• Focal length: 39.4 in (1 m)
• Dimming levels: 5
• Dimming percentages: 100%, 87%, 75%, 62%, 50%
• Endo mode: Yes
• Light field (d10): ≈Ø8.3 in (Ø209 mm)
• Light field (D50): ≈Ø4.9 in (Ø124 mm)
• Depth of illumination: ≈24 in (610 mm)
• Illuminance (one mask): 27.2%
• Illuminance (two masks): 37.2%
• Illuminance (tube with one mask): 24.3%
• Illuminance (tube with two masks): 40.3%
• Irradiance: 295 W/m²
Electrical Specifications:
• Supply circuit: 100 – 240 VAC, 50/60Hz
• Fuse rating: 2.5 Amp/250VAC
• Power supply: 100W
• Light head power consumption: 54W @24VDC
• Mechanical Specifications
• Light head weight: 14.8 lbs (6.7 kg)
• Light head dimensions: Ø18 in (Ø457 mm) | 4 in H (102 mm)
• Arm assembly weight (single): 48.3 lbs (22.0 kg)
• Arm assembly weight (dual): 77.1 lbs (35.0 kg)
• Articulating arm vertical movement: +15° Up, -60° Down
• Articulating arm horizontal movement: ≈540°
• Articulating arm/yoke interface: ≈540°
• Yoke/light head interface: ≈300°
• Environment Specifications
• Ambient/operating temperature: 41°F to 104°F (5°C to 40°C)
• Storage temperature: -4°F to 122°F (-20°C to 50°C)
• Humidity: 10 – 90% relative humidity
• Pressure: 100kPA (@<2k meters)
