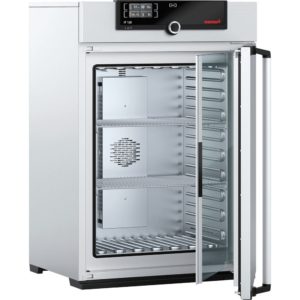

IN Plus Standard Incubator 2.6 cu ft

Memmert Incubators (IN PLUS) – this 74 liter programmable model is 115 volt or 230 volt, natural convection, with TwinDISPLAY digital controller. This natural convection incubator includes (2) Stainless Steel Grid Shelves, Atmocontrol Software, Atmocontrol Manual, Operation manual, Calibration Certificate and Power Cord.

Clear

Accessories

NOTE: Accessories ship with equipment

Description

Temperature:
•Setting temperature range +20 to +80 °C
•Working temperature range at least 5 above ambient temperature to +80 °C
•Setting resolution temperature 0.1 °C
•Temperature sensor 2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error
Control Technology:
•ControlCOCKPIT TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
•Language setting German, English, Spanish, French, Polish, Czech, Hungarian
•Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
•Function SetpointWAIT the process time does not start until the set temperature is reached
•Calibration three freely selectable temperature values adjustable parameters temperature (Celsius or Fahrenheit), air flap position, timer
•Sterilization fixed sterilization program (4 hours/160°C) for sterilization of working chamber, not for sterilizing the load
Ventilation:
•Convection natural convection
•Fresh air Admixture of pre-heated fresh air by electronically adjustable air flap
•Vent connection with restrictor flap
Communication:
•Documentation program stored in case of power failure
•Programming AtmoCONTROL software on a USB stick for programming, managing and transferring programs via Ethernet interface or USB port
Safety:
•Temperature control mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
•Temperature control overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display
•AutoSAFETY additionally integrated over- and undertemperature monitor “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
•Autodiagnostic system for fault analysis
•Alarm visual and acoustic

Additional information

Voltage Configuration

115V, 230V

Stainless Steel Interior:
•Interior easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
•Volume 74 l / 2.6 cu ft
•Dimensions w x h x d 15.7 x 22 x 13 inches
•Max. number of shelves 6
•Max. loading of chamber 264 lbs.
•Max. loading per shelf 44 lbs.
Textured Stainless Steel Casing:
•Dimensions w x h x d 23 x 37.2 x 20.2 inches (d +2.2” door handle)
•Housing rear zinc-plated steel
Electrical Data:
•Voltage 230 V (± 10%), 50/60 Hz
•Electrical load approx. 1250 W / 5.5 A
•Voltage 115 V (± 10%), 50/60 Hz
•Electrical load approx. 900 W / 7.9A
