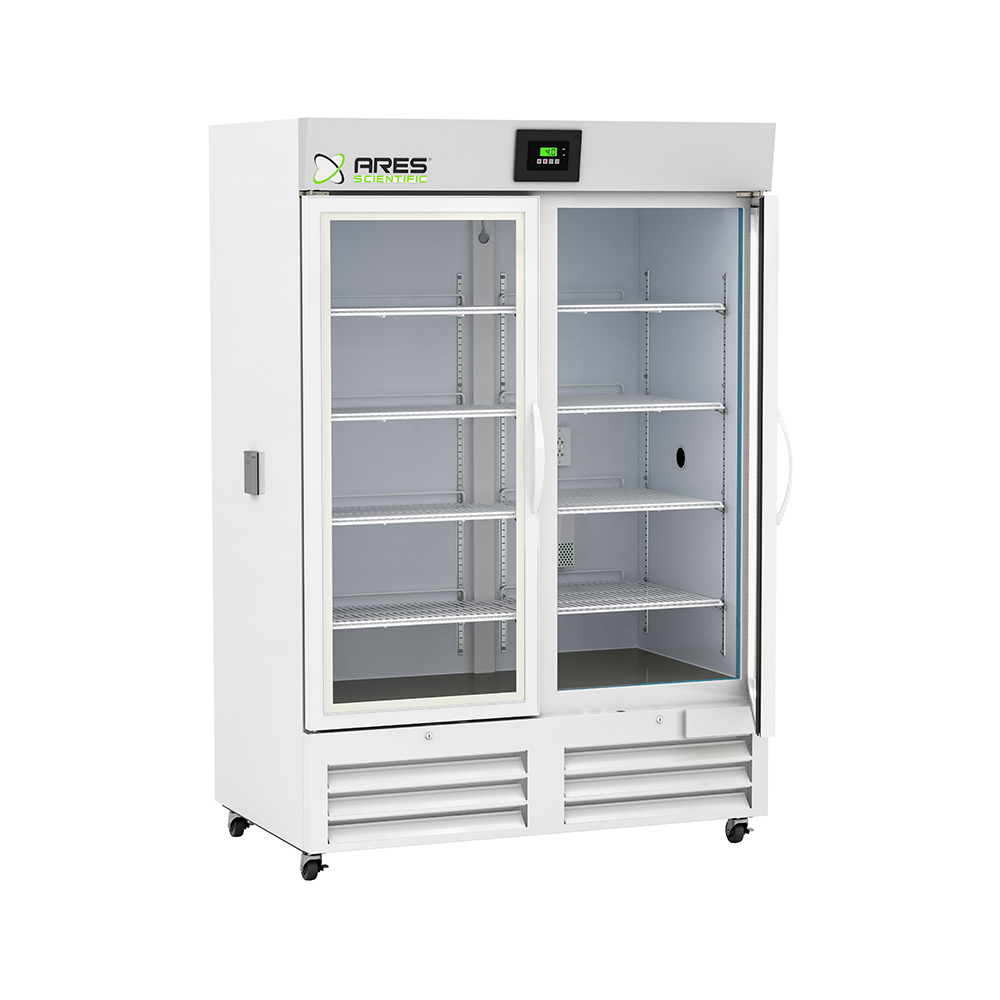

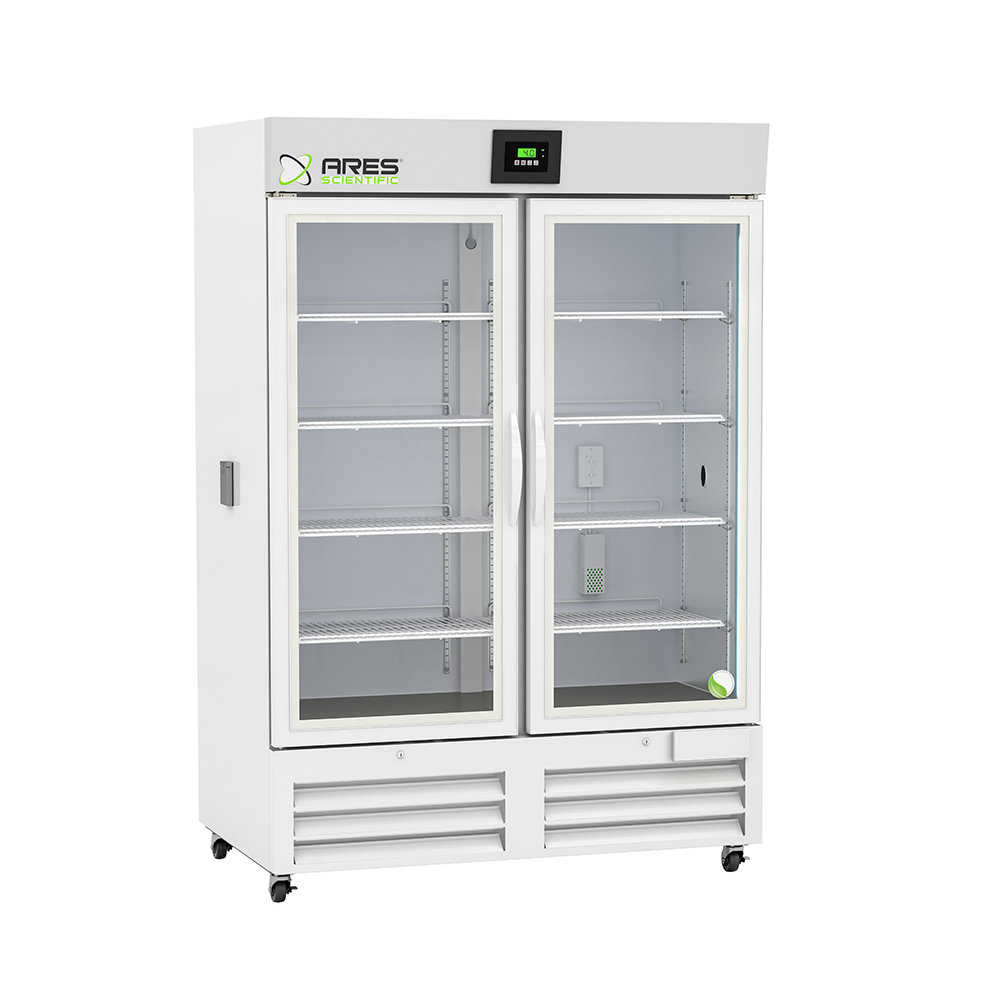

49 CF Plus Series Glass Door Chromatography Refrigerator

Description

49 CF Plus Series Glass Door Chromatography Refrigerator – Product Highlights

• 49 cu. ft. storage capacity with eight adjustable shelves (½” increments) for flexible organization of chromatographic samples, reagents, and pharmaceutical materials
• Microprocessor temperature controller with digital display delivers precise 1°C to 10°C management at 0.1°C resolution — verifiable temperature control versus mechanical thermostats
• Forced-draft air circulation provides excellent temperature uniformity and rapid recovery after door openings, protecting sample integrity in cold storage workflows
• R290 hydrocarbon refrigerant — EPA-compliant natural refrigerant paired with foamed-in-place high-density urethane insulation for energy-efficient performance and reduced environmental impact
• RS-485 MODBUS digital communication with remote alarm contacts integrates the unit into facility monitoring infrastructure for GLP and GMP-validated laboratory refrigeration compliance
• Complete alarm suite — audible and visual high/low temperature alarms, sensor error detection, power failure alert, alarm mute with ring back, and alarm validation features
• LED interior lighting is safety-shielded and switch-controlled for clear visibility across all shelf levels during sample inspection and inventory
• 3/4″ probe access port and two side wall port holes plus interior duplex outlet enable temperature monitoring and external equipment integration (unit requires two facility electrical outlets)
• Keyed door lock and white powder-coated steel construction — interior and exterior finish supports access control in regulated pharmaceutical and clinical environments
• Independent alarm module — temperature display and alarm system operates 100% independently of the microprocessor controller, delivering redundant pharmaceutical-grade monitoring for GMP and CLIA-regulated workflows

Frequently Asked Questions – 49 CF Plus Series Glass Door Chromatography Refrigerator

What is the temperature range of the ARS-HC-CP-49 chromatography refrigerator?

The ARS-HC-CP-49 maintains an adjustable temperature range of 1°C to 10°C with 0.1°C resolution. The microprocessor temperature controller and forced-draft air circulation system deliver precise temperature uniformity and rapid recovery after door openings, supporting pharmaceutical, clinical, and chromatographic sample storage applications.

What electrical requirements does the ARS-HC-CP-49 need?

The ARS-HC-CP-49 operates on 115V, 60 Hz, 4.5 Amps, 1/4 HP and ships with a NEMA 5-15 plug. The unit requires two separate facility electrical outlets — one for the refrigerator and one for the interior duplex outlet provided for laboratory refrigeration accessory equipment and chromatographic instruments.

What is the difference between the ARES Cool Basic series and Plus series chromatography refrigerators?

The Plus series adds an independent alarm module that operates 100% separately from the microprocessor temperature controller, providing redundant monitoring for GMP-regulated and clinical environments. Plus series units also include two side wall port holes versus one on Basic series, and carry a two-year parts and labor warranty versus one year on Basic series. The compressor warranty remains five years across both series.

What applications is the ARS-HC-CP-49 chromatography refrigerator used for?

The ARS-HC-CP-49 supports chromatographic sample preservation, pharmaceutical reagent storage, clinical chemistry workflows, blood banking, and FDA/GMP-regulated cold storage operations. Typical deployments include research institutions, hospital pharmacies, pharmaceutical R&D facilities, and clinical diagnostic laboratories requiring validated 1°C to 10°C temperature control with audible, visual, and remote alarm capabilities.

Is the ARS-HC-CP-49 Energy Star certified?

Yes. The ARS-HC-CP-49 is Energy Star certified in addition to being ETL and C-ETL listed and UL471 certified. The combination of R290 hydrocarbon refrigerant, foamed-in-place high-density urethane insulation, and forced-draft circulation supports efficient operation in continuous-duty cold storage deployments.
