ARES Cool 14 Cu. Ft. Plus Series Flammable Storage Laboratory Freezer ARS-HC-FFP-14P

Description

ARES Cool ARS-HC-FFP-14P – Product Highlights

• Plus Series with seven inner compartment doors — interior is divided into seven sub-compartments behind individually opening inner doors, reducing thermal loss and cross-compartment air exchange during sample retrieval compared to a single-door Basic Series flammable freezer.
• NFPA 45 and NFPA 30 compliant for unclassified laboratory work areas — engineered for in-cabinet frozen storage of flammable and combustible materials in ordinary, non-classified lab rooms, supported by ATEX and non-sparking interior architecture.
• Extensive alarm system — high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation with audible, visual, and remote signaling, and alarm mute with ring back; the Plus Series alarm suite is well above the Basic tier’s standard high/low temperature alarms.
• Five-year compressor parts warranty plus two-year parts and labor general warranty — extended compressor coverage supports total-cost-of-ownership planning for accredited environments and high-utilization research programs in the broader hazardous materials freezers and refrigerators family.
• 14 cubic foot interior, magnetic door gasket on main outer door — six fixed shelves behind the seven inner doors organize the cabinet into sub-zones across the -15°C to -25°C adjustable range, with magnetic gasketing for positive seal on the outer door.
• NEMA 5-15 standard plug, UL 471 conforming — installs in standard 115 V, 60 Hz, 3.5 A laboratory outlets; no conduit hardwiring or specialized electrical infrastructure needed, in contrast to the explosion-proof freezer tier required for classified rooms.
• Microprocessor temperature controller with digital display — Plus Series digital display and verifiable setpoint control across the freezer range, with tighter long-term stability than mechanical thermostat freezers in the broader laboratory freezer catalog.
• R290 natural hydrocarbon refrigerant — low global warming potential propane refrigerant, supported by hydrocarbon refrigerant safety listing under UL 471 and EPA-compliant foamed-in-place high-density urethane insulation.
• Keyed door lock, rear wall probe port, leveling legs — restricted access for controlled chemistries, 3/4 in. probe port for external monitoring and validation devices, and adjustable mounting for stable placement; ETL Listed and ENERGY STAR Certified.
• Plus Series warranty package — ARES Cool is ARES Scientific’s proprietary cold storage line, distributed exclusively by ARES Scientific with full warranty support and U.S.-based customer service, with the extended five-year compressor warranty backing the Plus tier.

Frequently Asked Questions – ARS-HC-FFP-14P

What does the Plus Series add over the Basic Series flammable storage freezer?

The Plus Series adds three concrete differentiators on top of the shared flammable-storage architecture: seven inner compartment doors inside the freezer for sub-zone access, an extensive alarm system (high/low temperature, sensor error, power failure, alarm validation with audible/visual/remote signaling, and alarm mute with ring back), and a five-year compressor parts warranty on top of the standard two-year parts and labor coverage. Buyers select Plus when accreditation pressure, multi-user workflows, or higher-value samples justify the upgrade over the cost-effective Basic tier in the same hazardous materials freezers and refrigerators family.

What are the seven inner doors inside the freezer compartment?

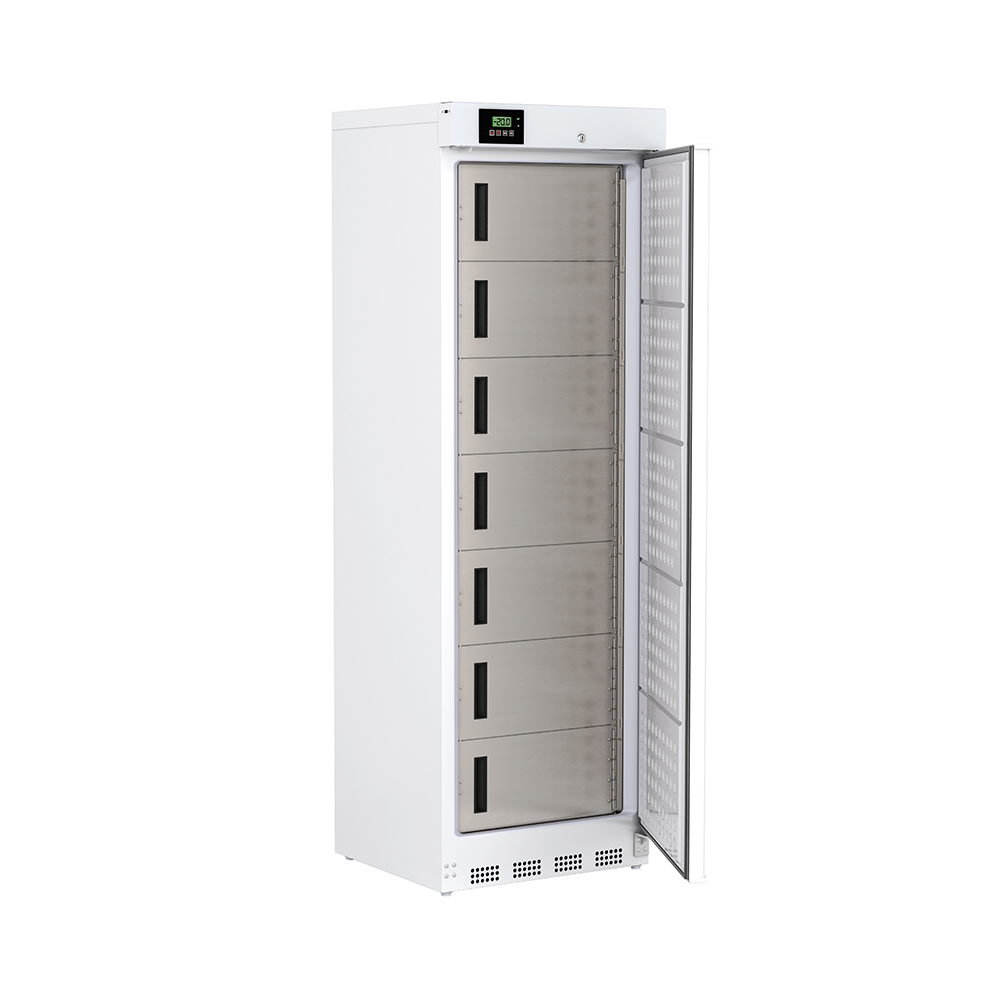

The FFP-14P interior is divided into seven stacked sub-compartments, each with its own inner door behind the main outer door. Opening one inner door to retrieve a sample minimizes cold-air loss from the other six compartments, reducing setpoint disturbance and recovery time compared to a single-door freezer. Each inner compartment is 7.875 inches tall, supporting organized segregation of materials by user, project, or chemistry class within the 14 cu. ft. cabinet.

What is “alarm validation with ring back” in the Plus Series alarm suite?

Alarm validation means the unit confirms its alarm signaling through multiple channels — audible, visual, and remote — so a single failure (a dead audible buzzer, an unobserved visual indicator, or a BMS connection issue) does not result in an undetected event. “Mute with ring back” allows an operator to silence a recurring alarm temporarily but ensures the alarm re-asserts after a set interval if the underlying condition has not been resolved, preventing accidental silencing of a persistent fault.

Why does the Plus Series carry a five-year compressor warranty instead of two-year?

The Plus Series compressor warranty reflects the upgraded compressor specification and the longer expected service life of accredited and high-utilization installations the Plus tier targets. The general parts-and-labor warranty remains two years; the additional five-year compressor parts warranty applies specifically to the compressor itself — typically the highest-cost replaceable component in a long-duty freezer. Total-cost-of-ownership planning for multi-year research programs benefits substantially from this coverage.

When should I choose Plus Series over Basic Series for flammable storage?

Plus is the right choice when any of the following apply: accreditation requirements (CAP, CLIA, USP, ISBER) drive the need for richer alarm telemetry and validation, multiple users share the cabinet and benefit from sub-zone segregation via inner doors, sample value justifies the extended compressor coverage, or the facility’s audit posture benefits from documented alarm validation. For standard solo-user flammable freezer workflows in non-accredited environments, the Basic Series typically meets the requirement at lower acquisition cost.

What facilities typically specify the FFP-14P Plus Series?

Plus Series is commonly specified by clinical and pharmaceutical labs running USP-compliant compounding programs, accredited testing facilities (ISO/IEC 17025), CAP-certified pathology and clinical labs, ISBER biorepository programs, academic chemistry departments serving multiple research groups, and contract testing labs servicing pharma and biotech clients. The cabinet integrates with the broader ARES Scientific laboratory freezers catalog for facilities standardizing across both flammable-storage and general-purpose cold storage tiers.
