ARES Cool 4.5 cu. ft. Stainless Steel Built-In Undercounter Refrigerator, Left Hinged

Description

ARES Cool 4.5 cu. ft. Stainless Steel Built-In Undercounter Refrigerator, Left Hinged – Product Highlights

• ARES Cool proprietary cold storage line: This unit is part of ARES Cool, ARES Scientific’s exclusive laboratory and medical-grade cold storage brand, distributed with full warranty support and technical service.
• Front-breathing built-in installation: Front-mounted ventilation eliminates top and side clearance requirements, enabling flush integration with laboratory casework, pharmacy counters, and clinical workstation cabinetry.

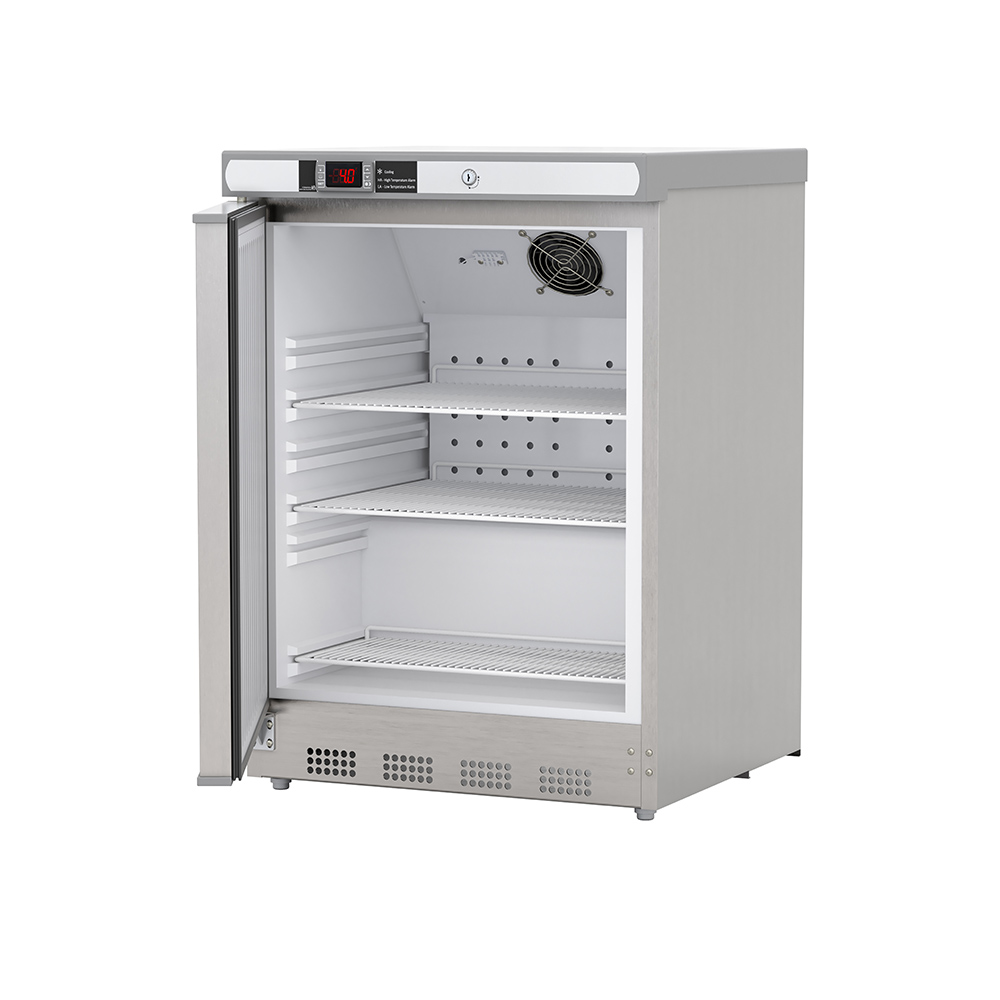

• 4.5 cu. ft. usable capacity: Three shelves (two adjustable, one fixed) with a rear guard rail accommodate reagent bottles, sample racks, IV bags, and vaccine cartons within an undercounter footprint.
• Microprocessor temperature control: 1°C to 10°C adjustable range with digital display and forced-draft air circulation delivers tight temperature uniformity and rapid recovery after door openings — improvements over mechanical-thermostat undercounter designs.
• Audible and visual high/low temperature alarms: Onboard alarm package paired with remote alarm contacts and RS-485 (MODBUS) digital communication supports integration with facility-wide temperature monitoring and compliance documentation systems.

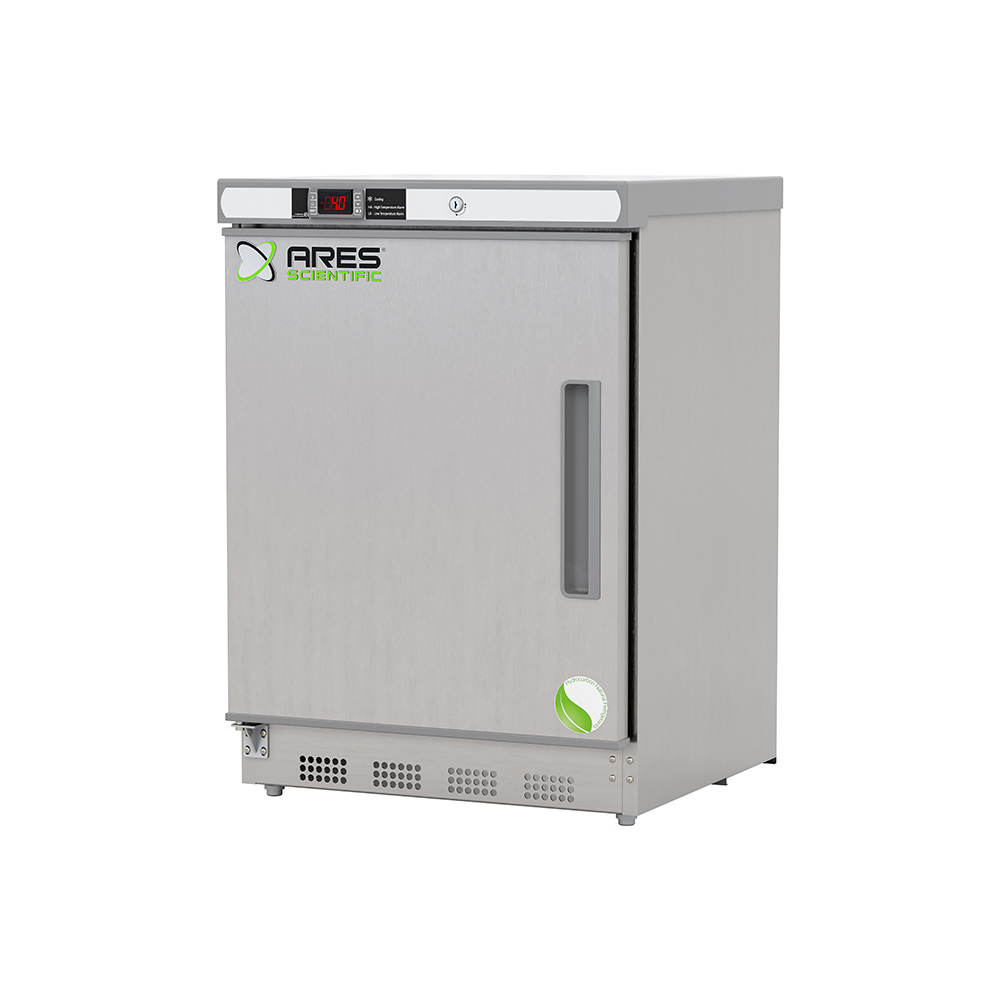

• Stainless steel door configuration: The left-hinged stainless steel door provides a durable, easy-to-sanitize barrier suited to clinical and pharmaceutical environments, paired with a keyed door lock for medication and sample security in pharmacy and nursing and clinical environments.
• HFC-free R600a hydrocarbon refrigerant: Natural refrigerant with a global warming potential of 3 supports institutional sustainability procurement and Energy Star efficiency targets — environmentally responsible compared to legacy HFC refrigeration systems.
• External probe access port: 3/4 in. port accepts third-party validation and calibration probes for temperature mapping, NIST-traceable monitoring, and regulatory documentation in CAP, CLIA, and AABB-inspected facilities.
• UL, C-UL, and ENERGY STAR certified: Listed for U.S. and Canadian healthcare and laboratory use on standard 115VAC/60Hz/1PH power, enabling plug-and-play installation without dedicated electrical service.
• Two-year parts and labor, five-year compressor warranty: Backed by ARES Scientific’s distribution and service network for long-term operational reliability across the full cold storage temperature spectrum.

Frequently Asked Questions – ARES Cool 4.5 cu. ft. Stainless Steel Built-In Undercounter Refrigerator, Left Hinged

What is a built-in undercounter laboratory refrigerator?

A built-in undercounter laboratory refrigerator is a compact cold storage unit engineered to install flush within cabinetry, pharmacy counters, and laboratory casework using front-mounted ventilation rather than the rear and side clearance required by freestanding units. The ARS-HC-UCBI-0404SS-LH delivers 4.5 cu. ft. of usable storage in a footprint designed to integrate into existing counter runs without modification to surrounding millwork.

When should I choose a stainless steel exterior over a powder-coated cabinet?

Stainless steel construction is preferred in clinical, pharmaceutical, cleanroom, and cGMP-adjacent environments where surfaces must withstand repeated disinfection with alcohols, quaternary ammonium compounds, hydrogen peroxide, or sodium hypochlorite without finish degradation. The ARS-HC-UCBI-0404SS-LH pairs a stainless steel exterior with a stainless steel solid swing door for full-surface chemical resistance, while the powder-coated ARS-HC-UCBI-0404-LH variant remains appropriate for general laboratory and pharmacy environments with standard cleaning protocols.

Does the ARS-HC-UCBI-0404SS-LH require dedicated electrical service?

No. The unit operates on standard 115VAC/60Hz/1PH service at 1.74 rated amps and ships with a NEMA 5-15 plug conforming to UL471. No dedicated circuit, special outlet, or facility electrical upgrade is required — installation is plug-and-play in any pharmacy, laboratory, or clinical workstation with a standard wall receptacle.

Is the unit suitable for vaccine and pharmaceutical storage?

Yes. The 1°C to 10°C microprocessor-controlled temperature range, audible and visual alarms, keyed door lock, and external probe access port together support vaccine storage workflows and pharmaceutical hold applications. For VFC program participation and other regulated vaccine storage programs, facilities should verify monitoring and documentation procedures separately and consult the ARES Scientific guide to medical refrigerators for vaccine storage for selection criteria.

How does this differ from a freestanding undercounter refrigerator?

Built-in (UCBI) models use front-breathing ventilation that exhausts and intakes air through the front grille at the base, eliminating the requirement for top and side clearance and allowing the cabinet to install flush against adjacent millwork. Freestanding (UCFS) models require approximately 4 in. of clearance around the back and sides for proper ventilation — improper clearance on a freestanding unit voids the warranty. Choose built-in for integrated counter installations and freestanding for standalone bench placement.

What refrigerant does the unit use?

The Plus Series Built-In Undercounter Refrigerator uses R600a, an HFC-free hydrocarbon refrigerant with a global warming potential of 3. This natural refrigerant supports institutional sustainability procurement creiteria and ENERGY STAR efficiency targets, replacing the legacy HFC refrigerants used in older undercounter cold storage equipment.
