Benchmark Accuris Absorbance Microplate Reader, for 96 Well Plates, 115V

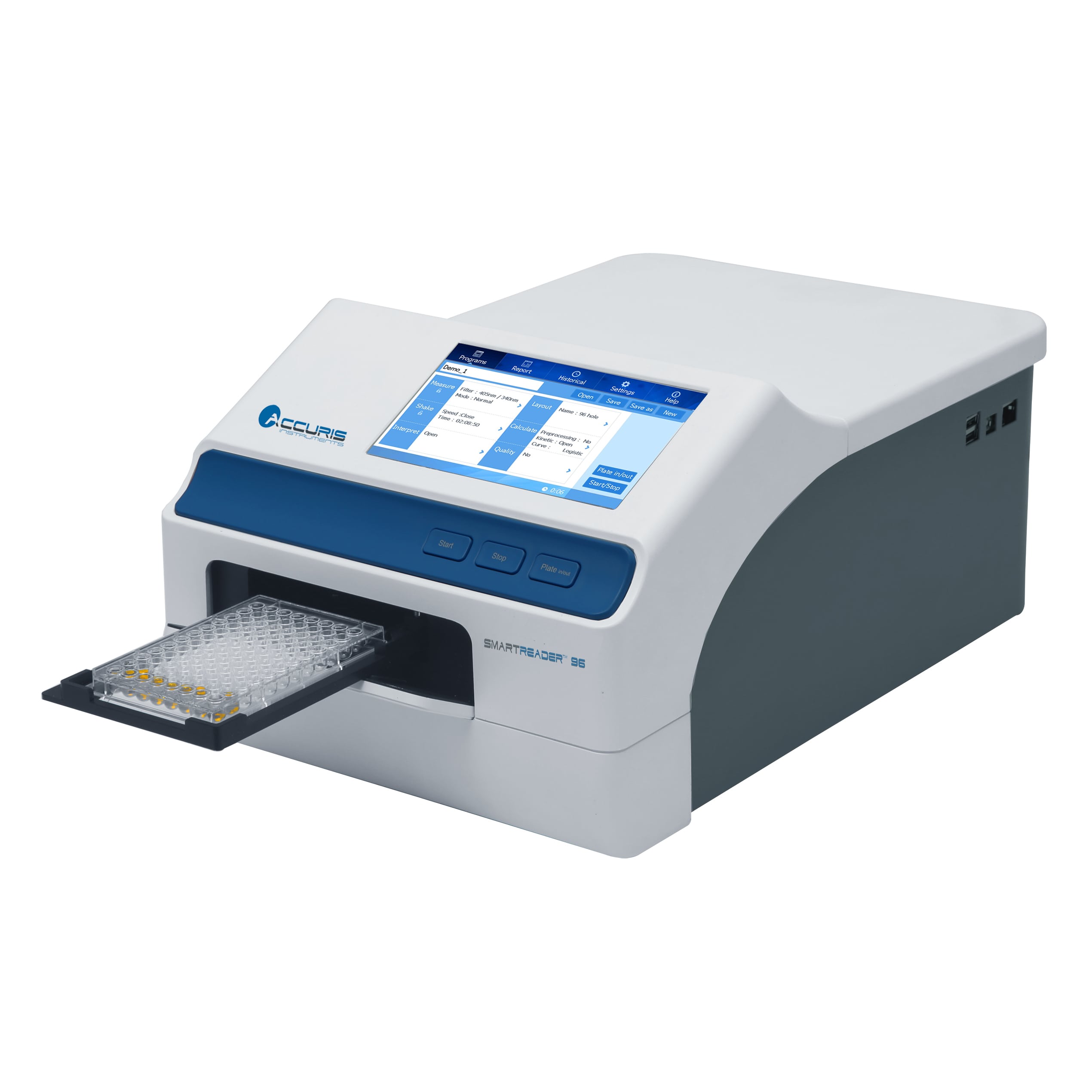

The Accuris SmartReader 96 (model MR9600) is an excellent addition to laboratories that need to measure absorbance and concentration in 96 well plates. It has a 7-inch touch screen and a user-friendly interface. It functions as a stand-alone unit, so additional software and a computer are not needed.

The MR9600 SmartReader 96 comes with 4 common filters: 405, 450, 492, 630 nm. In addition, twenty-six additional filters are available, covering 340 to 750 nm. The integrated filter wheel can hold 8 filters at once, and filters can be selected during programming

The unit can be programmed and operated via the touch screen or by connecting a mouse. The interface allows the user to set the wavelength filter, shaking parameters, enter details of the plate layout, and set reading protocols and data calculations.

Accessories

Description

• Intuitive, 7-inch color touch screen control panel
• Filter based system with wavelength range from 340 to 750nm
• Operates as a stand-alone system, or connects to a PC or Printer
• Absorbance range: 0.0 to 4.0000 Abs
• 8 channel vertical optical path, with zero dispersion
• Integrated, multispeed plate shaker
• Incubation ambient +5C to 50C
• Include 4 popular filters: 405,450,492,630nm
• Twenty-six additional filters are available separately to cover a spectrum range from 340 to 750nm
• The menu interface allows the user to choose the wavelength filter, set shaking parameters, enter the plate layout details, and choose the details for the reading protocol and data calculations.
• Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons. Kinetic calculations can be performed by setting multiple readings.
• Stand-alone reader, all software, and the programing system is incorporated into the electronics. However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing.
• A data port can be used for connecting a computer or basic printer.
• The plate layout interface allows for quick and intuitive set up of a plate’s well contents. The display shows a graphical representation of the 96 well plate, and the user can label each well as required for: “known standard”, “unknown sample”, “blank well”, “QC control well”, “negative control”, “positive control”, or “empty”. The interface allows highlighting and labeling multiple wells to save time.
• Measurement data is available immediately on the screen after a reading, as well as interpretations, calculated analysis and curve fittings

• Control and Display: 7-inch touch screen (800 x 480 pixels)
• Light Source: Quartz-halogen lamp 6V/10W
• Wavelength range: 340-750nm (405, 450, 492 and 630nm filters included)
• Half-Bandwidth of filters: 3-9nm
• Read-out range: 0 – 4.000 Abs
• Linearity (405nm): 0-2.000 Abs <+1% / 2-4.000 Abs <+2% • Resolution: 0.001 Abs • Accuracy (405nm): +1% (0-3 Abs) / +2% (3-4) Abs • Precision (405nm): CV <0.2% (0-3) Abs / CV <1.0% (3-4) Abs • Test speed: <6 sec. for 96 well plate • Incubator: No • Shaking: 3 modes; slow, medium, and fast • User interface: Integrated software, touch screen control • Storage: 200 programs and 100,000 test records • Ports: USB ports, for PC, printer, mouse, and flash drive • Dimensions (W x D x H): 11.6 x 17 x 8.75 • Weight: 10kg

2 Years
