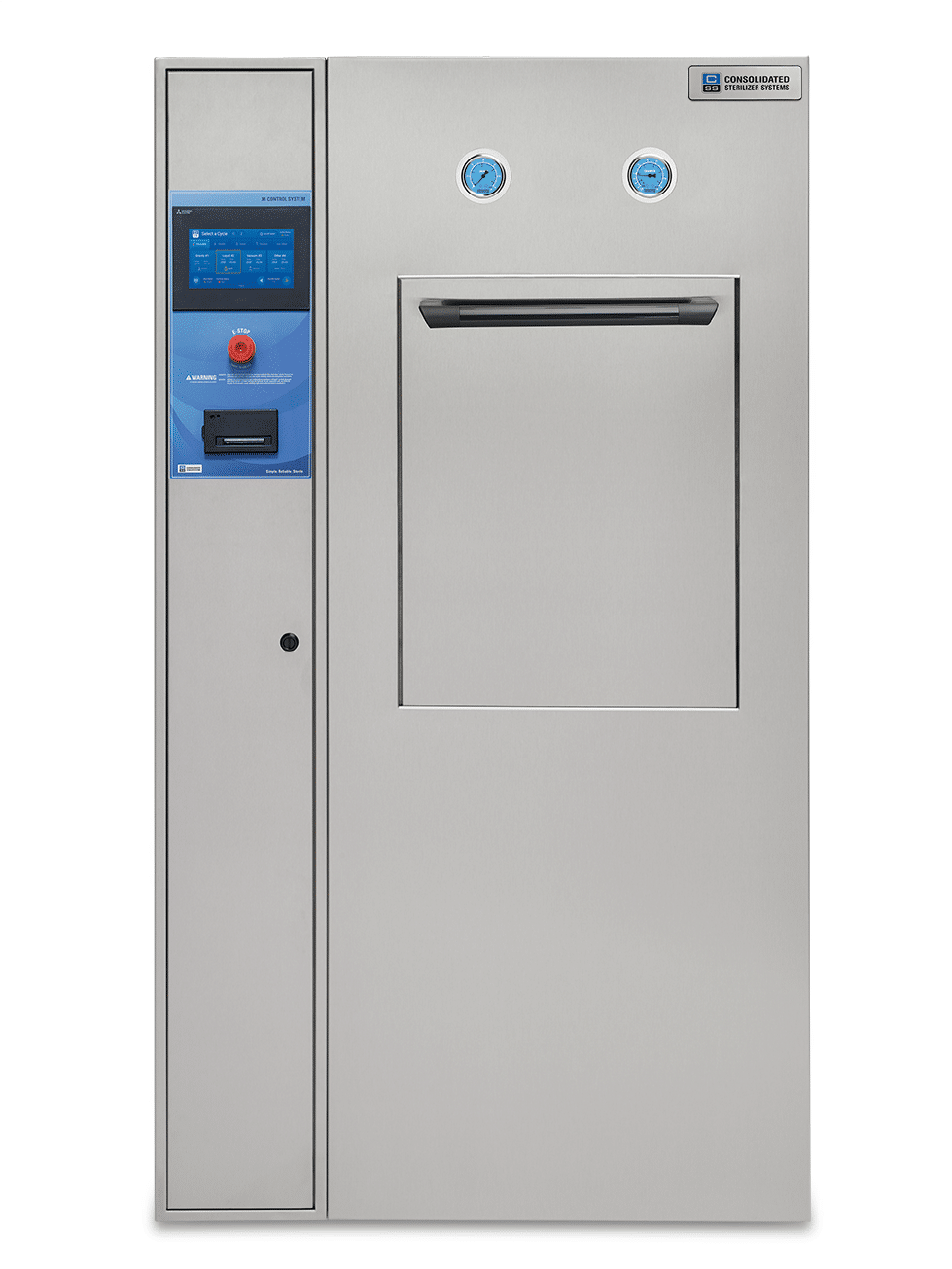

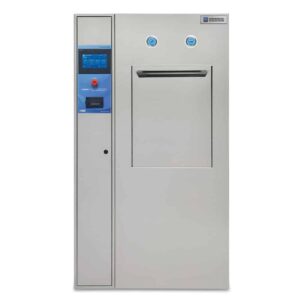

EZ-Glide™ ™ Vertical Sliding Door Lab Series Steam Sterilizers

Consolidated EZ-Glide™ Series Sterilizers are designed to sterilize at temperatures between 212° F and 275° F* (100° C and 135° C*) through the use of steam. Choose a stainless steel vessel construction in a variety of sizes and programmable control options for pre-vacuum or gravity operation. Consolidated sterilizers offers a range of performance options to meet the most demanding applications in clinical, animal and life science, biotechnology, pharmaceutical, and commercial/industrial applications.

Clear

Control Systems

Chamber Finish

Piping Construction

Controller Mounting

General Options

Shelving Options

Pass-Thru (Double-Door) Options

Accessories

Description

EZ-Glide™Sliding Door:
• The EZ-Glide™ sliding door steam sterilizer simplifies chamber access with a sliding counterbalanced door that seals safely against an air actuated non-stick gasket.
• The gasket is recessed into a precision-machined slot and will maintain a secure seal even in the event of a total utility loss. The gasket is easy to replace and does not require special tools or lubrication.
• The door sealing mechanism includes redundancy for added security; a safety lock prevents the door from opening if the chamber is under pressure.
• Ergonomic benefits include a wide-grip handle and smooth, vertical open/close action on a counterbalanced assembly that is easy-to-operate with one-hand access.
• Standard configuration is manual operation. One-touch, automatic power door configuration is available as an option.
• Safety features – Low closing force, can be stopped with minimal effort. – Powered door is closed using a push and hold button.
The X1™ Control System:
• An intuitive user interface with modern, easy to view touchscreen display.
• Ability to program up to 50 sterilization cycles.
• Ability to favorite frequently used cycles for quick access.
• A controller platform that is built from industry-standard, open-source components allowing for easy availability of parts and service.
• Standard security features prevent inadvertent or unauthorized process changes
Chamber Door and Gasket System:
• Door engagement is clearly visible to confirm closure.
• An electrical door switch ensures that the door is fully closed and locked prior to the start of the cycle. If the signal is lost during a sterilizing cycle, the cycle is automatically aborted.
• The door is mechanically locked during a cycle to prevent inadvertent opening.
• Abrasion resistant, low-friction, non-stick sealant on gasket prevents door jams and extends gasket life.
Components:
• Piping, fittings, and valves are available in stainless steel or brass/bronze. All parts and components subject to repair are publicly available (i.e. non-proprietary) from open market sources, including controls, valves and fittings.
• Safety relief valves and drains are integral to the plumbing configuration.
• Baffled steam inlets minimize direct condensate on the load, reduce load wetting, and help assure proper steam uniformity within the chamber.
• Cabinet insulation retains heat and minimizes heat loss (see Table 10) to the room. The sterilizer jacket and all steam service piping include a minimum 1″ fiberglass-based insulation.
• On units equipped with steam generators, a manual reset pressure switch is included to back up the safety relief valve by automatically shutting down the steam generator if an overpressure condition exists.
• Easy-to-read pressure gauges ensure simple and safe operation.
• Other components required for the intended application may include a steam generator, vacuum pump, water ejector, etc. depending on the options chosen.

Additional information

Door Configuration

Verticle Sliding Door Single Chamber 8.8 Cu. Ft., Verticle Sliding Door Single Chamber 15.25 Cu. Ft., Verticle Sliding Door Single Chamber 19.2 Cu. Ft.

Consolidated manufactures high-quality, reliable steam sterilizers that stand the test of time, and we take pride in our simplistic design and low prices. All Consolidated autoclaves include a one (1) year warranty covering defective parts and labor, as well as a substantial warranty on the sterilizer chamber. In addition, this warranty can be customized to fit your needs.
