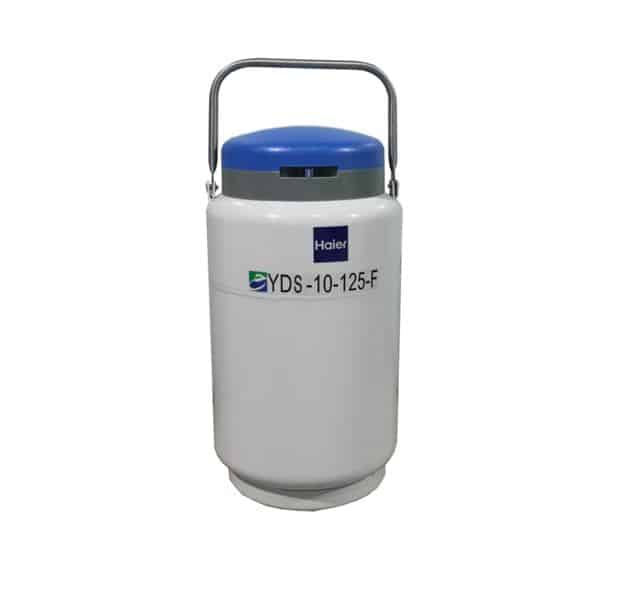

Haier’s Small Sized Storage Series utilized their Liquid Nitrogen Storage System with square racks to provide excellent sample storage with low liquid nitrogen loss. These containers are lightweight and designed to have a minimal footprint relative to sample storage capabilities.
• Dual handles
• 5 year vacuum warranty
• High thermal efficiency
• Ultra-low LN2 evaporation loss
• Strong, lightweight aluminum construction
• Heavy duty lockable enclosure offers excellent security
• Roller bases available
• Temperature monitoring available
Maximum Storage Capacity
• No. of Rack: 1
• 1.2&2 ml Cryovials (25 per box): 100
• No. of Boxes in (Rack): 4
Performance
• Liquid Nitrogen Volume (L): 10
• Static Evaporation Rate* (%/d): 0.42
• Static Holding Time** (Day): 24
Dimensions:
• Opening Diameter (mm): 125
• Height (mm): 625
• Outside Diameter (mm): 300
• Empty Weight (kg): 6.3
• Full Weight (kg): 15.1
• Shipping Weight (kg): 9.6
* Static evaporation and static holding time are theoretical values. Actual evaporation and holding time are affected by usage, atmospheric conditions and
** Static Holding Time: the amount of days it takes for all of the LN to evaporate out after container is filled with liquid nitrogen to pre-cool and reach thermal equilibrium and the liquid nitrogen filling rate reaches 100% under standard atmospheric condition.
