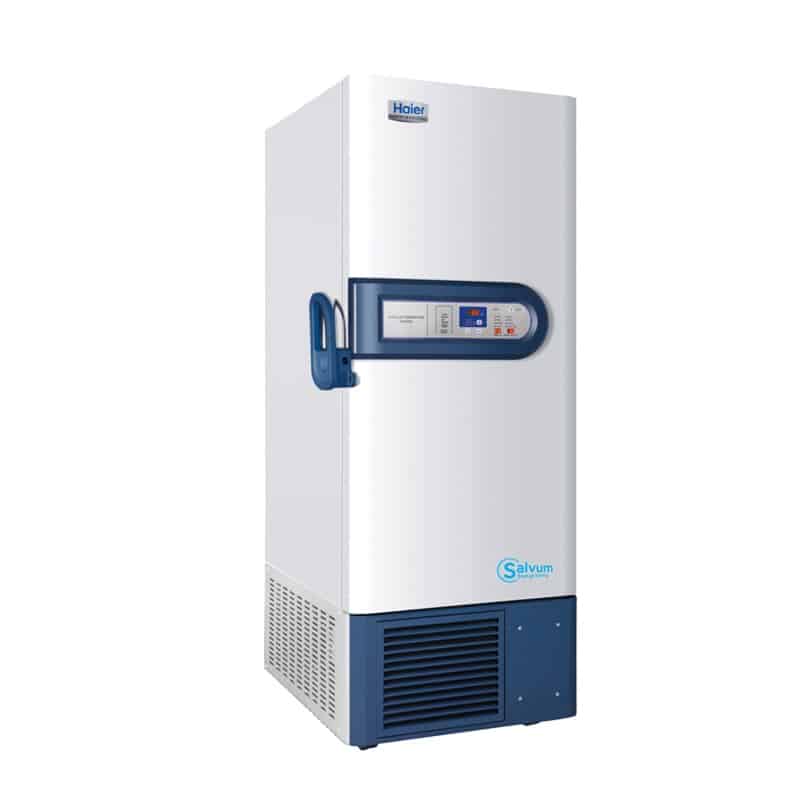

Haier Ultralow -86C Freezer, Energy Star 338L (11.9 cf)

Haier Biomedical’s ULT freezers are the finest in the industry when you need ultra low-temperature storage. These units are very quiet due to a specialized refrigeration system that utilizes unique fans and compressors combined with a vibration-absorbing chassis to minimize sound output. Special vacuum insulation paneling reduces heat gain by 25%, and the hydrocarbon refrigeration system improves efficiency by 45%. Finally, these units have many unique design features to improve usability, like a pressure equalization port that allows the freezer to be reopened quickly after closing.

Clear

Voltage *

Accessories

Description

• Hydrocarbon refrigeration system that increases efficiency by 45%
• Slim cabinet design
• Reliable sample protection
• Malfunction alarms
• Excellent insulation performance
• Natural HC refrigerant, environmentally friendly, better energy-saving performance
• LED digital display, microprocessor controlled
• Foamed inner door, five-layer seal gasket that reduces heat gain by 25%
• Automatic clean-filter alarm and sensor error alert
• Optional temperature recorder, storage racks, and storage boxes, RS232/485 Port, CO2 Backup System, and LN2 Backup System
• Compatibility with existing racking system from competitors

Additional information

Interior

,

Technical Data
• Cabinet Type: Upright
• Climate Class: N
• Cooling Type: Direct Cooling
• Defrost Mode: Manual
• Refrigerant: HC
• Sound level (dB(A)): 50
Performance
• Cooling Performance (°C): -86
• Temperature Range (°C): -40 ~ -86
Control
• Controller: Microprocessor
• Display: LED
Electrical Data
• Power Supply (V/Hz): 115/60 – 208~230/60
• Power (W): 700 – 1000
• Electrical Current (A): 12 – 7.5
Dimensions
• Capacity (L/Cu.Ft): 338/11.9
• Net/Gross Weight kg (approx): 238/278
• Net/Gross Weight lbs (approx): 524.7/612.9
• Interior Dimension (W*D*H) mm: 465*630*1165
• Interior Dimension (W*D*H) in: 18.3*24.8*45.9
• Exterior Dimension (W*D*H) mm: 830*893*1846
• Exterior Dimension (W*D*H) in: 32.7*35.2*72.7
• Packing Dimension (W*D*H) mm: 875*970*2010
• Packing Dimension (W*D*H) in: 34.4*38.2*79.1
• Container load (20’/40’/40’H): 12/24/24
Alarms
• High/Low Temperature: Y
• Hot Condenser: Y
• Power Failure: Y
• High/Low Voltage: N/A
• Sensor Error: Y
• Low Battery: Y
• High Ambient Temperature: Y
• Door Ajar: Y
Accessories
• Caster: Y
• Foot: Y
• Porthole: Y/2
• Shelves/Inner doors: 3/2
• USB Interface: Y
• Remote Alarm (Dry contacts): Y
• 5V Power Supply Port: Y
• Temperature Recorder: Optional
• RS232/485 Port: Optional
• CO2 Backup System: Optional
• LN2 Backup System: Optional
• Certification: CE
