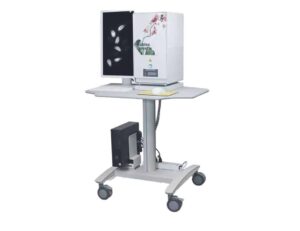

KUBTEC XPERT® 20 Benchtop Cabinet X-ray System

The KUBTEC® XPERT® 20 Cabinet X-ray system is a compact yet powerful X-ray machine for use directly in the laboratory workspace. It is beneficial for agricultural applications. With an imaging area of 3.5″ x 4.7″ (9 cm x 12 cm), it takes high-resolution X-ray images that are perfect for evaluating seed germination potential. Finally, it has one of the industry’s smallest footprints and an optional maneuverable cart.


• Benchtop X-Ray System designed for placement directly in your lab
• Eliminate the need for transportation of samples to a separate area
• AEC based fully automated digital imaging with manual option included
• Automatic calibration with zero warm-up time
• Ability to save annotated images in multiple formats
• Contact and 1.3X geometric magnification stages
• Desktop or mobile platform option for easy transportation
• Seed counting software

• Detector Size 3” x 5” (12 cm x 7 cm)
• Spatial Resolution 10.4 lp/mm (contact mode), 15.6 lp/mm (mag mode)
• Energy Range 10-50 kV
• Tube Current up to 1.0 mA
• Window Filtration 0.005″ beryllium
• Power 90-250 VAC, 50/60 Hz, 400 VA
• Wireless Connectivity Standard
• Size (W x D x H) 11″ x 12″ x 20″ (28 x 30.5 x 51 cm)
• Weight without cart 70 lbs. (32 kg)
• Weight with cart 170 lbs. (77 kg)
