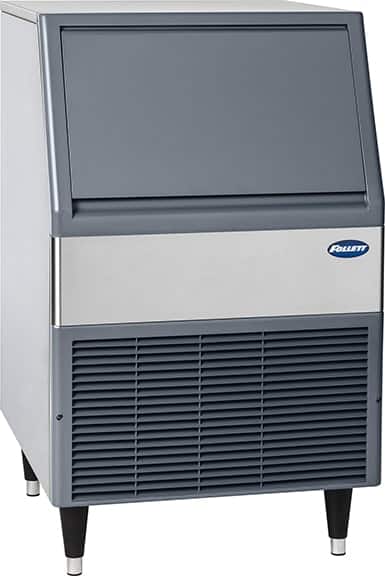

Maestro Plus™ ice machine bin 425 series for healthcare applications 75 lb capacity

Up to 425 lb (193 kg) of production and 75 lb (34 kg) of storage capacity. Perfect for space limited facilities. Less than 24.00” (61.0 cm) wide, the Maestro Plus ice machine bin will provide the capacity you need in a small footprint.

Clear

Description

Features:
Up to 425 lb (193 kg) of production and 75 lb (34 kg) of storage capacity. Perfect for space limited facilities. Less than 24.00” (61.0 cm) wide, the Maestro Plus ice machine bin will provide the capacity you need in a small footprint.
• Under counter application without the legs: 33.00″ (83.8 cm) tall unit will fit under standard counters. Teflon glides allow it to slide easily into place.
• Freestanding: 39.00″ (99.1 cm) tall with legs
Flake ice is the preferred ice for blood banks, clinical labs, rehab and medical research:
• High surface area of flake ice chills quickly, maintains samples at desired temperature
• Holds test tubes and lab vials securely, even when ice is melting
• Molds well in ice bag and rehab applications for best skin contact and swelling control
Efficient dependable design:
• Stainless steel evaporator, auger and top bearing provides durability
• Oversized, heavy duty, tapered roller bearing ensures long low-maintenance life
• Semi-automatic cleaning cycle reduces maintenance costs
• Regular flushing improves ice quality and reduces scale
Lower utility bills:
• Energy-efficient, no costly defrost cycles
• 25% less energy than comparable capacity cube machines
• 40% less water than comparable capacity cube machines
Designed for easy installation and service:
• Front ventilated – no side clearance required
• Rear utility access allows for rear electrical and plumbing connection with no rear clearance required
• Bin and shroud may be removed for service and maintenance

Additional information

Door Configuration

Micro Chewblet™ Ice, Flake Ice

• Ice storage capacity: 75 lb (34 kg)
• W1 Width: 23.50″ (59.7 cm)
• D1 Depth: 26.00″ (66.0 cm)
• H1 Height with legs: 39.00″ (99.0 cm)
• H2 Height without legs: 33.00″ (83.8 cm)
• Service and ventilation clearance: front ventilated, no side, top or back clearance required
• Utility connection location: back
• C1 Electrical 115 V/60/1: 8 amps, 7′ (2 m) cord, NEMA 5-15 plug
• C2 Potable water inlet: 3/8″ push in
• C3 Drain: 3/4″ MPT when unit is installed without legs, floor drain must be within 6′ (1.8 m)
• Air temperature: 50 – 100 F (10 – 38 C)
• Water temperature: 40 – 90 F (4 – 32 C)
• Potable water pressure: 10 – 70 psi (69 – 483 kpa) 0.7 Bar – 5 Bar max
• Ice production at 70 F (21 C) air and 50 F (10 C) water: 425 lb (193 kg)
• Ice production at 90 F (32 C) air and 70 F (21 C) water: 325 lb (147 kg)
• Energy consumption 90 F (32 C) air; 70 F (21 C) water: 5.4 kWh
• Heat rejection: 5,000 BTU/hr
• Water consumption: 12.0 gal (45.4 L) of potable water per 100 lb (45.4 kg) of ice
• Approximate ship weight: 194 lb (88 kg)

3 years parts and labor, 5 years compressor parts
