Description
Product Highlights

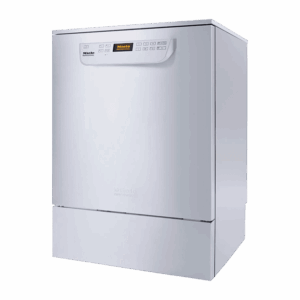

• Miele Professional’s PG 8583LD Laboratory Glassware Washer: A dedicated washer designed for Zebrafish and Aquatics research.
• DI water connection: This feature enhances the cleaning process, especially in environments where the presence of minerals in tap water can interfere.
• EcoDry Function: For optimized cleaning efficiency and superior drying support.
• Environmentally Conscious: The washer reduces water consumption by 40% compared to its predecessor.
• Water Softener: The washer-disinfectors come standard with a water softener, ensuring the removal of harmful ions that cause water hardness.
• AutoOpen Feature: Post-reprocessing, the washer door opens automatically below a temperature of 158°F, ensuring rapid drying by letting residual moisture evaporate quickly.
• Variable-Speed Heater Pump: Adjusts the wash pressure based on unique requirements, ensuring thorough cleaning.
• Crevice-Free Wash Cabinet: Designed using cutting-edge seamless laser welding technology, it resists dirt deposition and stain adhesion, ensuring high hygiene standards.
• Safety Measures: Features like spray arm monitoring and pressure control systems ensure safety during washing operations.
• Optimal Results: The washer promises reliable and validated reprocessing quality, making it a vital asset for Zebrafish and Aquatics Research laboratories.
Construction type and design
• Model: Freestanding appliance, can be built-under, slim
• Outer casing: Stainless Steel
• Can be built-under
• AutoClose – Automatic door lock
• Buzzer: Acoustic signal at end of program
• Design feature: Easy-to-service construction
Application
• Purpose: Suitable for laboratories
Capacity
• Laboratory flasks per cycle: 128
• Pipettes per cycle: 98
Performance data
• Circulation pump, Qmax in gal/min (l/min): 132.1 (500)
• Shortest program cycle time in min: 29
• Maximum final rinse temperature in °F (in °C): 199 (93)
• Usable wash cabinet volume in l: 5.12 (145)
• Tested operating hours: 15000
Control
• Control system: Touch Control
• Program selection: Touch on Metal
• Short cut buttons
• Max. delay start in h: 24
• Programmability: Programmable
• Programs: 14
• Free program slots: 2
• A0 value controls
• Features: Automatic program restart, Time-left display, Program-cycle display, Choice of display languages
Standard electrical connection
• Electrical connection: 3 AC 208V 60HZ
• Electric heater rating in kW: 5.4
• Total rated load in kW: 6.2
• Fuse rating in A: 20
• Length of power cord in ft (m): 5 (1.8)
Possible voltage variant 1
• Electrical connection: 2 AC 208V 60HZ
• Electric heater rating in kW: 5.4
• Total rated load in kW: 6.2
• Fuse rating in A: 30
Water connection/drainage
• Cold water: 1
• Cold water for steam condenser: 1
• Hot water: 1
• DI water: 1
• Required flow pressure in kPa: 200-1000
• Maximum delivery head for drain pump in inches (cm): 39 3/8 (100)
• Integrated water softener
• Maximum water hardness (cold water/hot water) in gpg (mmol/l): 10.7 (10.7)
• Drain pump [DN]: 0.866 (22)
• Water protection system: Waterproof system
Drying unit
• Air throughput in m³/h: 60
Dimensions and weight
• External dimensions, net height in inches: 32 7/8 (835)
• External dimensions, net width in inches: 23 5/8 (600)
• External dimensions, net depth in inches: 23 5/8 (600)
• External dimensions, gross height in inches: 37 1/16 (940)
• External dimensions, gross width in inches: 26 5/8 (675)
• External dimensions, gross depth in inches (mm): 27 (685)
• Wash cabinet, usable height in inches: 20 1/2 (520)
• Wash cabinet, usable width in inches: 20 7/8 (530)
• Wash cabinet, depth of upper basket in inches: 18 11/16 (474)
• Wash cabinet, depth of lower basket in inches: 20 1/2 (520)
• Net weight in lbs: 163.142 (74)
• Gross weight in lbs: 178.575 (81)
Emission values
• Emission sound pressure level in the workplace: 70 dB(A) re 20 µPa
• Heat dissipation into the room in btu/h (MJ/h): 1.1
Programs
• Special 93°C–10′ (200°F)
• Standard
• Universal
• Intensive
• Inorganica
• Organica
• Injector Plus
• Pipettes
• Plastics
• Mini
• Oil program
