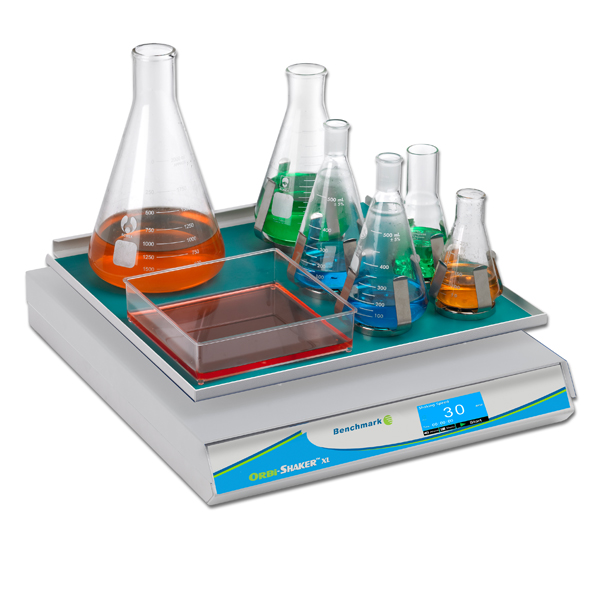

Orbi-Shaker™ XL with Touch Screen Display and rubber mat platform (18″x18″)
Quote
The Benchmark Orbi-Shaker™ XL (BT1011) is a high-capacity benchtop orbital shaker built for labs that need large-volume, high-throughput shaking without moving to a floor model. With an oversized 18″ x 18″ platform and a 19 mm orbital throw, it delivers strong aeration and mixing for common applications like cell culture, bacterial/yeast culture, media preparation, staining/destaining, hybridization washes, and general sample agitation in flasks, bottles, racks, and microplates (with optional platforms).
Designed for workflow efficiency, the BT1011 pairs a touch screen display with a variable 30–300 rpm speed range and flexible timing (from short runs to extended protocols). The included non-slip rubber mat supports low-speed mixing and versatile vessel placement, while the optional MAGic Clamp™ platform enables fast, tool-free changes between flask clamps, tube racks, and microplate accessories—ideal for shared labs and multi-user environments
Description
Key Features
- High-capacity benchtop orbital shaker: Large 18″ x 18″ platform supports up to 5 x 2L flasks or 9 x 1L flasks for high-throughput culture and mixing.
- Wide speed range for culture and staining workflows: Variable 30–300 rpm with 1 rpm increments for precise protocol control.
- 19 mm orbital throw for aeration & mixing: Circular orbit enhances oxygen transfer and uniform agitation for flasks and bottles.
- Touch screen control: Intuitive operation for speed and time settings in shared lab environments.
- Non-slip rubber mat platform included: Ideal for low-speed mixing and flexible vessel placement without clamps.
- MAGic Clamp™ compatibility (optional): Instantly change flask clamps, tube racks, and microplate accessories without tools (patented system).
- Built for long runs: Timer from 1 minute to 99 hours (or continuous) for overnight cultures and extended procedures.
Specifications
| Speed Range | Variable 30 to 300 rpm |
|---|---|
| Speed Increment | 1 rpm |
| Orbit | 19 mm |
| Timer | 1 min to 99 hr or continuous |
| Platform Size | 18 x 18 in. / 45 x 45 cm |
| Load Capacity | 5 x 2L or 9 x 1L / 65 lbs (30 kg) |
| Ambient Operating Temperature | +4°C to +65°C |
| Dimensions (W x D x H) | 18.5 x 21.25 x 5 in. (47 x 54 x 12.5 cm) |
| Weight | 65 lbs (30 kg) |
| Electrical | 120V or 230V, 50–60 Hz |
| Power | 50 W |
| Warranty | 2 years |
2 Years
