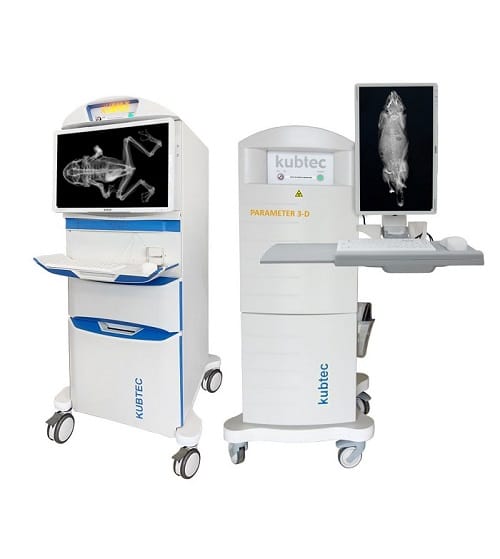

KUBTEC Parameter™ 3D and Supra Tomosynthesis System

The KUBTEC® Parameter™ 3D Tomosynthesis System is a cutting edge multislice radiography imaging system with scientific, forensic, and non-destructive (NDT) testing applications. The system is the most advanced cabinet X-ray unit on the market and offers 2D and 3D imaging capabilities.
Applications Include:
• Bone Mineral Density / Body Composition
• Non-Destructive Testing
• Product Inspection
• Forensics
• Forensic Anthropology
• Seed Counting / Seed Inspection
• X-rays of Explosives, Art, Gems, Papers
• Small Mammal Imaging
• 3D Tomosynthesis

Clear

Description

• 1 mm digital 3D slices of the specimen
• High-resolution 2D images
• Tomosynthesis data set and a robust software toolkit for image analysis
• Faster than micro CT
• 3D images available in seconds
• Repeatability for longitudinal studies is clinically proven
• Integrated HD optical camera
• High resolution tomosynthesis data set and a robust software toolkit for image analysis.
• 5″ x 6″ (12 x 15 cm) or 10″ x 12″ detector on PARAMETER Supra System.
• Up to 2.3x geometric magnification for increased visibility to detect the smallest abnormalities.
• Auto Magnification available on PARAMETER Supra System
• Fully shielded.
• Automatic exposure control based fully automated digital imaging with manual option included.
• Integrated high-resolution optical camera for side-by-side comparisons with X-ray images.
• Automatic calibration with zero warm up time.
• Powerful user-friendly image analysis tools.
• Ability to save annotated images in multiple formats.
• Seamless interface with pathology and other third party software.
• BMD and Body Composition Software option.
• Fully mobile for easy transportation.
• Data portable to SolidWorks.

Additional information

Model

,

• Spatial Resolution: 10 lp/mm, contact mode
• Detector: 5” x 6” 48 micron CMOS
• Energy Range: 10-50 kV
• Tube Current: up to 1.0 mA
• Window Filtration: 0.005″ beryllium
• Power: 90-250 VAC, 50/60 Hz, 500 VA
• User Interface: Icon based interface
• Tools: Annotate, Measure, and Store in multiple formats
• Size (W x D x H): 24″ x 23″ x 57″ (61 x 58 x 145 cm)
• Weight: 300 lbs. (136 kg)
• Software Packages: DXA BMD/BMC and Body Composition; SXA BMD; Counting; and Analysis.
