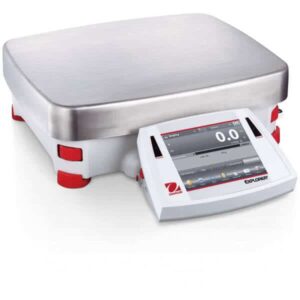

Description
Modular Design:
• 5.7″ (145mm) diagonal color VGA touch screen optimizes viewing and menu navigation
• Two touchless sensors on display offer hands-free operation
• The display can be separated from the base up to 5 feet (1.5 meters) in order to fit operational needs in almost any workspace. A 27 foot (9 meter) cable is also available when additional flexibility is needed.
Superior protection in rugged or unstable environments:
• With a die-cast metal base and a 14.8″ × 12.2″ (377 × 311mm) stainless steel pan, the Explorer High Capacity is built to withstand rugged, every day use.
• 2-D Protection prevents shock and damage associated with movement and forces applied to the balance
• IP54 base enclosure protects the weighing base from damage by debris and accidental spills and splashes. (High Capacity models only)
High Capacity Accessories for Added Efficiency:
• Adjustable rolling feet option provides assistance to easily moving the balance
• Rechargeable battery option provides 10 hours of operation away from a power source
• Weigh-below hook included and can be used for density determination
• Maximum Capacity: 35,000 g
• Readability: 0.1 g
• Readability (Certified): 1 g
• Pan Size: 14.8 in x 12.2 in (377 mm x 311 mm)
• Internal Calibration: AutoCal™ – Automatic
• Draftshield: —
• Auto Door: Not Applicable
• Auxiliary Display Model: Available as an Accessory
• Battery Life: Not Applicable
• Communication: Ethernet (Available as an Accessory); USB (Included); RS232 (Included)
• Dimensions: 17.44 in x 4.7 in x 14.9 in (443 mm x 120 mm x 377 mm) (LxHxW)
• Display: Full-color 5.7 in VGA, touch screen
• Inuse cover: Included
• Legal for Trade: NTEP Certified; Measurement Canada Approved
• Linearity ±: 0.2 g
• Minimum Weight (USP, 0.1%, typical): 210 g
• Net Weight: 22 lb (10 kg)
• Pan Construction: Stainless Steel
• Power: AC Adapter (Included)
• Repeatability, typical: 0.1 g
• Stabilization Time: 1 s
• Tare Range: To capacity by subtraction
• Units of Measurement: Singapore Tael; Ounce Troy; Pennyweight; Kilogram; Grain; Tical; Custom; Milligram; Newton; Momme; Taiwan Tael; Baht; Gram; Hong Kong Tael; Pound; Tola; Mesghal; Carat; Ounce
• Working Environment: 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
