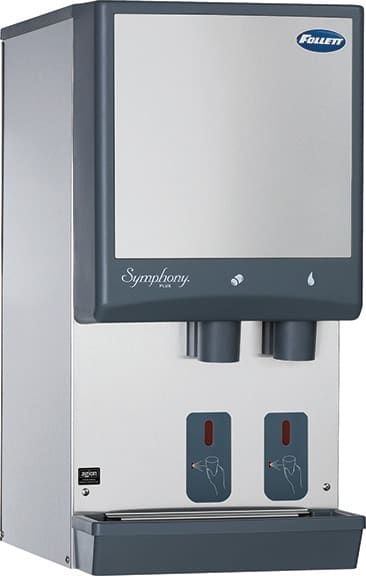

Symphony Plus™ ice and water dispenser 12 CI series 12 lb capacity

Integral air-cooled ice machine with 12 lb of ice storage capacity and up to 425 lb (193.0 kg) of daily production of Chewblet ice.

Clear

Accessory

Description

Features:
• Narrow, 16.12″ (40.9 cm) width
• 12 lb (5.4 kg) ice storage capacity
• Integral air-cooled ice machine with up to 425 lb (193.0 kg) daily production of Chewblet ice
• soft, chewable, compressed nugget ice is preferred over cubes and is ideal for patient care
• Quiet Night™ sleep mode turns off ice machine when idle

Designed with sanitation in mind:
• Automatic self-flushing of ice machine removes impurities
• Drain cup provides internal air gap for added protection of food zone components from drain line contaminants
• Agion® silver-based antimicrobial provides protection of key ice and water contact components
• One-hand lever or SensorSAFE infrared ice dispense
Dependable design, easy to service and clean:
• Cleaning and sanitizing of entire machine takes only 1 hour
• LED control board provides at-a-glance machine status
• Panels are easily removed for accessibility to all components
• Ice machine parts are common across all Symphony Plus dispensers
• Stainless steel evaporator and auger deliver long life
Environmentally responsible:
• Meets Consortium for Energy Efficiency Tier 2 specifications
• R404a refrigerant has zero ozone depletion potential
• Continuous ice making process uses less electricity and water
Durable, attractive dispenser:
• Stainless steel cabinet with accent trim
• Poly drain pan, grille and dispenser lid are corrosion-resistant
Easy installation:
• Comes fully assembled and installs with three easy connections – electric, water and drain

Additional information

Door Configuration

12lb Capacity with Lever Dispense, air cooled, ice and water, 12lb Capacity with SensorSAFE Dispense, air cooled, ice and water, Ice Only, 12lb Capacity with Lever Dispense, air cooled, Ice Only, 12lb Capacity with SensorSAFE Dispense, air cooled

Ice storage capacity: 12 lb (5.4 kg)
• W1 Width: 16.12″ (40.9 cm)
• W2 Width, base stand accessory: 17.50″ (44.4 cm)
• D1 Depth, entire dispenser: 23.50″ (59.7 cm)
• D2 Depth, drain pan: 5.50″ (13.97 cm)
• D3 Depth, base stand accessory: 22.00″ (55.9 cm)
• H1 Height, dispenser: 32.50″ (82.6 cm)
• H2 Dispense height clearance: 9.38″ (23.83 cm)
• H3 Height, base stand accessory: 33.00″ (83.8 cm)
• H4 Height, leg kit accessory: 36.64″ (93.1 cm)
• Ventilation clearance: 6.00″ (15.24 cm) top and right side
• Service clearance: 12.00″ (30.5 cm) top
• Utility connection location: through back or bottom
• C1 115 V/60/1 electrical: 11 amps, 0.8 kW, 8.5′ (2.6 m) cord, NEMA 5-15 90º, hospital grade plug
• C2 Potable water inlet: 3/8″ FPT
• C3 Drain: 3/4″ MPT
• Air temperature: 50 – 100 F (10 – 38 C)
• Water temperature: 45 – 90 F (7 – 32 C)
• Potable water pressure: 10 – 70 psi (69 – 483 kpa)
• Heat rejection: 5000 BTU/hr
• Approximate net weight: 144 lb (65 kg)
• Approximate ship weight: 199 lb (90 kg)
• Approximate ship weight, base stand accessory: 80 lb (36 kg)
NOTE: For indoor use only

3 years parts and labor, 5 years compressor parts
