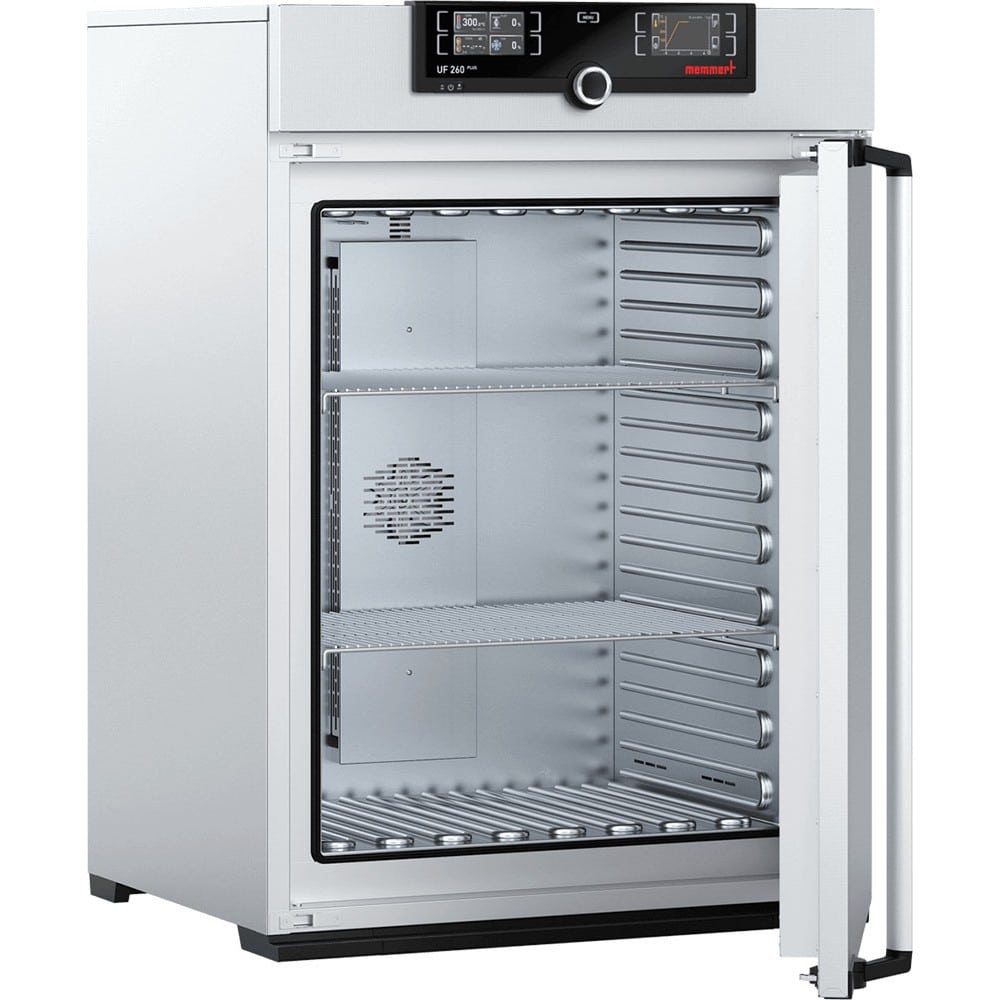

Memmert UN Plus Universal Oven 9 cu ft

Memmert Universal heating and drying Oven – this programmable 256 liter model is 115 volt or 230 volt, natural convection, with TwinDISPLAY digital controller. Each individual appliance is tested according to the requirements of DIN 12 880: 2007-05. Includes (2) Stainless Steel Grid Shelf, Atmocontrol Software, Atmocontrol Manual, Operation manual, Calibration Certificate and Power Cord.

Accessories

NOTE: Accessories ship with equipment

Description

Temperature:
•Working temperature range at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
•Setting resolution temperature up to 99.9 °C: 0.1 / from 100 °C: 0.5
•Setting temperature range +20 to +300°C
•Temperature sensor 1 Pt100 sensor DIN class A in 4-wire-circuit
Control Technology:
•Language setting German, English, Spanish, French, Polish, Czech, Hungarian
•ControlCOCKPIT SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
•Timer Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
•Function SetpointWAIT the process time does not start until the set temperature is reached
•Calibration three freely selectable temperature values
•Adjustable parameters temperature (Celsius or Fahrenheit), air flap position, timer
Ventilation:
•Convection natural convection
•Fresh air Admixture of pre-heated fresh air by electronically adjustable air flap
•Vent connection with restrictor flap
Communication:
•Documentation settings stored in case of power failure
•Data Logging AtmoCONTROL software for reading out, managing and organizing the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).
Safety:
•Temperature control adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
•Autodiagnostic system for fault analysis

Additional information

Voltage Configuration

115V, 230V

Stainless Steel Interior:
•Interior: easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
•Volume 256 l / 9 cu ft
•Dimensions W x H x D: 25.2 x 31.5 x 19.7 inches
•Max. number of shelves 9
•Max. loading of chamber 661 lbs.
•Max. loading per shelf 44 lbs.
Textured Stainless Steel Casing:
•Dimensions W x H x D: 32.4 x 46.6 x 26.9 inches (d +2.2” door handle)
•Housing rear zinc-plated steel
Electrical Data:
•Voltage/Electrical load 230 V (±10%), 50/60 Hz approx. 3400 W / 14.8 A or 115 V (±10%), 50/60 Hz approx. 1800 W / 15.7 A
