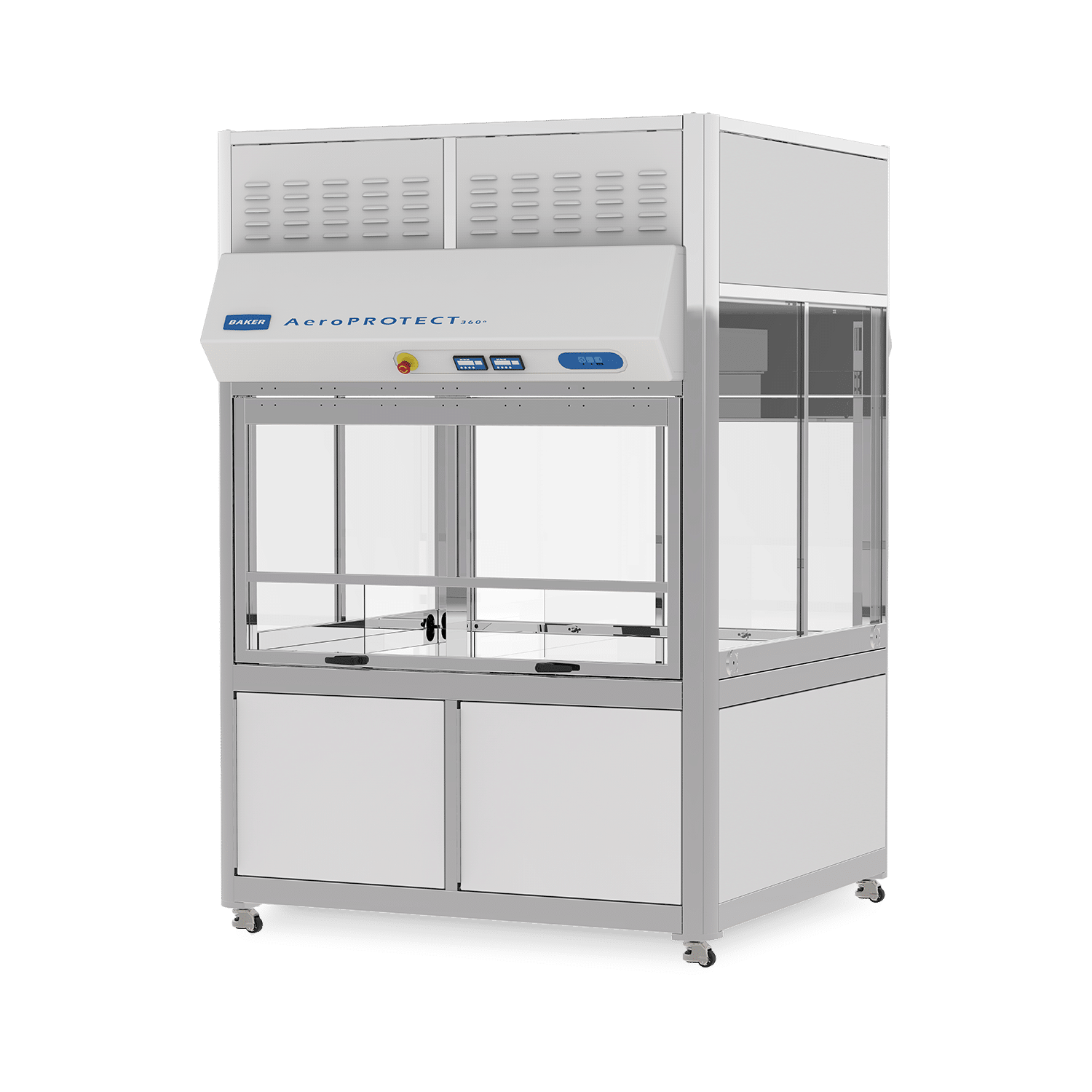

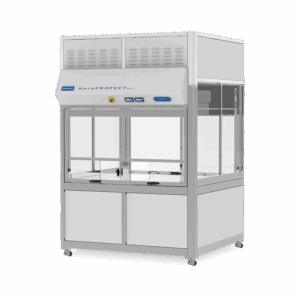

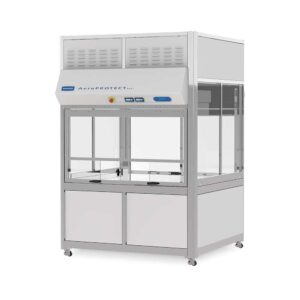

AeroPROTECT 360° Aseptic Containment Isolator

AeroPROTECT 360° is a truly versatile containment enclosure for laboratory automation. Baker’s exclusive technology maximizes product protection and meets or exceeds NSF International Standard 49 microbiological aerosol testing criteria for product and personnel (user) protection. AeroPROTECT 360° features a series of four biocontainment enclosures designed specifically to house robotics systems, such as automatic liquid handlers.

Clear

Description

Hinged front view screen with multiple, 8” (203mm) sliding sashes for direct user access. Front door opening dimensions vary by model, as follows:
• 5.5’ has a front door opening of 58”w x 30.5”h with two sliders (16”x 8”)
• 8’ has a front door opening of 88”w x 30.5”h with three sliders (16”x 8”)
• 11’ has two front door openings of 58”w x30.5”h with four sliders (16”x 8”) each
• 16’ has two front door openings of 88”w x 30.5”h with six sliders (16”x 8”) each
Other features
• Membrane switch control pad
• Digital pressure gauges monitor downflow and intake velocities
• Audible alarm warning when either a high or low flow condition is present
• Power/Processor fault alarm
• Adjustable motor speed control compensates for filer loading and extends filter life
• LED lights illuminate interior work surface to 100 f.c. @ work surface
• Maintenance access for filters, lights, motor/blower, and electrical components
• Supply and Exhaust HEPA filtration, at least 99.99% efficiency (at 0.3 microns)
• Leveling casters are used for ease of movement on the unit. Once the unit is positioned into place, unit can be leveled
• 2” (50.8mm) inner diameter cable ports, 2 positioned within the left side wall and 2 in the right side wall
• Power connections:120 V, 20 A/ 230 V, 30 A needed for single phase
• Emergency stop switch to cut power to internal outlets
• Scratch proof (mar resistant) polycarbonate viewing windows

Additional information

Choose an option

65” x 74” x 95.5”, 95” x 74” x 95.5”, 124” x 74” x 95.5”, 185” x 74” x 95.5”

12 Month
