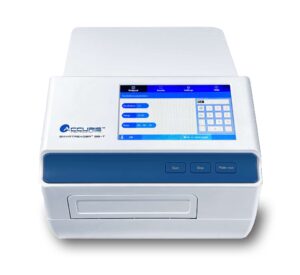

Benchmark SmartReader™ 96 Microplate Absorbance Reader with Incubation, 115V

Model MR9600-T is an excellent addition to laboratories that need to measure absorbance and concentration in 96 well plates while maintaining precise temperature control during processing. Temperature can be maintained at 5°C above ambient to 50°C. It has a 7-inch touch screen and a user-friendly interface. It functions as a stand-alone unit, so additional software and a computer are not needed.

The MR9600-T SmartReader 96 comes with 4 common filters: 405, 450, 492, 630 nm. In addition, twenty-six additional filters are available, covering 340 to 750 nm. The integrated filter wheel can hold 8 filters at once, and filters can be selected during programming

The unit can be programmed and operated via the touch screen or by connecting a mouse. The interface allows the user to set the wavelength filter, shaking parameters, enter details of the plate layout, and set reading protocols and data calculations.

Description

• MR9600-T features temperature controlled plate incubation
• Intuitive, 7-inch color touch screen control panel
• Filter based system with wavelength range from 340 to 750nm
• Operates as a stand-alone system, or connects to a PC or Printer
• Absorbance range: 0.0 to 4.0000 Abs
• 8 channel vertical optical path, with zero dispersion
• Integrated, multispeed plate shaker
• Incubation ambient +5C to 50C
• Include 4 popular filters: 405,450,492,630nm
• Twenty-six additional filters are available separately to cover a spectrum range from 340 to 750nm
• The menu interface allows the user to choose the wavelength filter, set shaking parameters, enter the plate layout details, and choose the details for the reading protocol and data calculations.
• Up to two filters can be used for 2 measurements of the sample plate, for calculated comparisons. Kinetic calculations can be performed by setting multiple readings.
• Stand-alone reader, all software, and the programing system is incorporated into the electronics. However, a convenient USB port on the side allows quick and easy saving of data files to a USB drive, and the universal .csv files can then be shared or transferred to a computer for storage or further processing.
• A data port can be used for connecting a computer or basic printer.
• The plate layout interface allows for quick and intuitive set up of a plate’s well contents. The display shows a graphical representation of the 96 well plate, and the user can label each well as required for: “known standard”, “unknown sample”, “blank well”, “QC control well”, “negative control”, “positive control”, or “empty”. The interface allows highlighting and labeling multiple wells to save time.
• Measurement data is available immediately on the screen after a reading, as well as interpretations, calculated analysis and curve fittings

• Control and Display: 7-inch touch screen (800 x 480 pixels)
• Light Source: Quartz-halogen lamp 6V/10W
• Wavelength range: 340-750nm (405, 450, 492 and 630nm filters included)
• Half-Bandwidth of filters: 3-9nm
• Read-out range: 0 – 4.000 Abs
• Linearity (405nm): 0-2.000 Abs <+1% / 2-4.000 Abs <+2%
• Resolution: 0.001 Abs
• Accuracy (405nm): +1% (0-3 Abs) / +2% (3-4) Abs
• Precision (405nm): CV <0.2% (0-3) Abs / CV <1.0% (3-4) Abs
• Test speed: <6 sec. for 96 well plate
• Incubator: Yes
• Temperature Control: Ambient +5°C to 50°C/Accuracy +/- 0.5°C @ 37°C / Uniformity +/- 0.5°C @ 37°C
• Shaking: 3 modes; slow, medium, and fast
• User interface: Integrated software, touch screen control
• Storage: 200 programs and 100,000 test records
• Ports: USB ports, for PC, printer, mouse, and flash drive
• Dimensions (W x D x H): 11.6 x 17 x 8.75
• Weight: 10kg

2 Year
