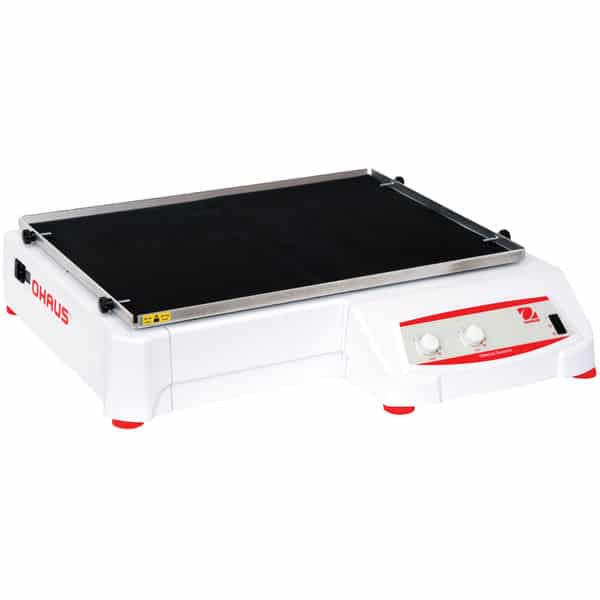

Ohaus Heavy Duty Orbital Shaker SHHD2325AL

OHAUS Heavy Duty Shakers are designed to handle a wide range of applications with load capacities ranging from 16 to 68 kg. These powerful shakers provide a consistent orbital shaking action that maximizes efficiency in the laboratory. Eight models are available including digital models that offer repeatably precise speed control, and non-digital models that are an economical alternative.


Platform Accessories


• Ready for your lab – all models include a tray and rubber mat and can be customized with over 70 accessory options.
• Rely on the digital shakers’ exclusive Accu-Drive shaking system for exceptional speed control, accuracy and durability. All models feature a maintenance-free motor for long-term use.
• Protect your samples. Optimal speed ramping feature slowly increases speed to setpoint to avoid splashing. The load sensor detects unbalanced conditions and automatically reduces to a safe speed.
• Display: Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
• Operation: Detachable 3-wire cord and plug (included)
• Communication: RS232 interface provides two-way communication for data logging and unit control (digital models)
• Construction: Cold rolled steel (CRS)
• Design Features: Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)

• Motion: Orbital, 25 mm
• Capacity: 22.7 kg
• Speed Range: 25 rpm – 500 rpm
• Tray Size (LxW): 18 in x 24 in (45.7 cm x 61 cm)
• Control: Analog
• Drive System: Triple Eccentric; Brushless DC Motor
• Calibration: Speed calibration
• Communication: RS232 (Included)
• Dimensions: 24 in x 5.9 in x 26.7 in (61 cm x 14.9 cm x 67.8 cm) (LxHxW)
• Net Weight: 108 lb (49 kg)
• Orbit: 1 in (25 mm)
• Power: 120V, 5A, 50/60Hz
• Power Consumption: 75 W
• Safety Certification: TUV
• Speed Accuracy: ±1 rpm, Above 100 rpm ±1% of set speed
• Speed Range: 25 rpm – 500 rpm
• Timer: 1 minute – 120 minutes
• Tray Construction: Aluminum
• Working Environment: 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
