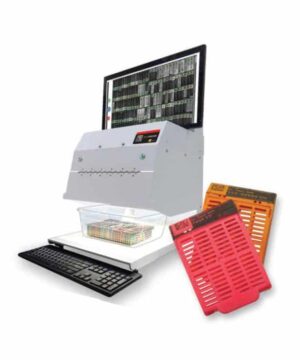

Laboratory personnel often do not have the time to hand scan hundreds of slides or cassettes when doing bulk sample transfers. The resulting lack of sample tracking leads to lost time and stress when determining where a slide or cassette ended up. PathTracker eliminates lost samples and simplifies bulk transfers of cassettes and slides by automatically scanning and tracking samples rapidly. It scans a 150 cassette basket 18x faster than hand scanning and a 20 slide folder 8x quicker. After scanning, Pathtracker directly uploads the scanned sample data to your LIS.
• Rapid bulk scans
• 150 Barcodes to your LIS in 25 seconds
• Intuitive graphical user interface
• Saves time and eliminates mistakes
• Increases lab productivity.
• Visual confirmation of the scanned samples
• Automatic uploads of the results to your LIS
• Notifies of missing or late samples
• Dashboard tracking of the sample workflow
• Sample search reporting for tracking single samples or whole batches
Specifications:
• Computer OS: Win 10 Pro
• USB 3.0 Ports: 4
• LAN Port: 1 GigaBit Cat5
• Washable Keyboard and Mouse: Standard
• Hand Held Bar Code Reader: Standard
Display:
• Touch Screen: Standard
• Size (Diagonal): 54.5 cm/ 21.5 inch
• Resolution: 1920 x 1080
Sample Capacity:
• Maximum Cassette FOV (HxV): 22.9 x 15.3 cm
• Maximum Number of Cassettes: 150
• Maximum Microscope FOV (HxV): 34.3 x22.9 cm, 13.5” x 9.0” inch
• Maximum Number of Slides: 20
• Maximum Container Height: 14.0 cm, 5.5” inch
Instrument Size:
• Height: 81.3 cm, 32.0’ inch
• Width: 52.3 cm, 20.6” inch
• Depth: 61.0 cm, 24.0” inch
Weight:
• Instrument: 38.2 Kgs, 84 lbs
• Shipping: 88.4 Kgs, 195 lbs
Ventilation Coupling:
• Diameter: 10.2 cm, 4” inch
• Height from Table Top: 21.3 cm, 8.4” inch
• Weight 38.21 kgs, 84.25 lbs
Power:
• Input AC100 ~ 240V 6A 50/60Hz
• Fuse: 8 AMP / 240V Slow Blow, 5x20mm
• Operation Temperature: 0-40 C or 32-104 F
• Caution: For indoor use only. For use with Diagnostic Instrument, Inc. PathTracker Software only.
• Certifications: CE, FCC Class A, RoHS
