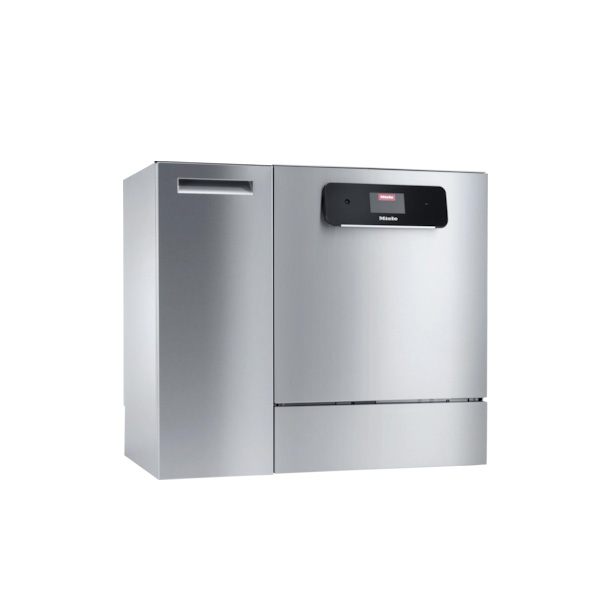

Miele PLW 8683 CD Undercounter Laboratory Glassware Washer

Description

Miele PLW 8683 CD [U DC5 LAN] – Product Highlights

• DryPlus hot-air drying with HEPA filtration circulates filtered heated air through narrow-neck and injector glassware so labware exits the cycle dry and ready for immediate reuse.
• Crevice-free laser-welded stainless steel wash cabinet resists corrosion and eliminates residue traps, keeping the chamber itself easy to clean and hygienic across daily cycles.
• Continuous spray-arm and wash-pressure monitoring confirms mechanical cleaning action on every load, giving quality and validation teams reproducible, documented performance.
• M Touch Flex full-touch color display presents plain-text programs and on-screen how-to sequences that shorten operator training and reduce cycle-selection errors.
• EasyLoad modular load carriers reconfigure quickly for flasks, pipettes, test tubes, and vials, and integrate with the broader range of Miele laboratory washing and drying systems.
• Application-specific wash programs including Injector Plus, Pipettes, Organic, Inorganic, Agar, and Plastics let each department match the cycle to its glassware and soil type.
• Integrated water softener and demineralised-water final rinse deliver spot-free, low-residue results that protect downstream analytical and trace-level workflows.
• Waterproof System (WPS) flood protection guards against leaks and reduces the risk of water damage in benchtop and shared-lab installations.
• Networked WiFi and Ethernet connectivity with optional Miele MOVE compatibility supports remote status visibility and cycle documentation, a key point when choosing the right glassware washer features.
• ARES Scientific is an authorized distributor for Miele, ensuring genuine products with full manufacturer warranty.

Frequently Asked Questions – Miele PLW 8683 CD [U DC5 LAN]

What is the Miele PLW 8683 CD [U DC5 LAN] laboratory glassware washer?

The Miele PLW 8683 CD is an ExpertLine undercounter laboratory glassware washer, also called a lab glasswasher or automated washer-disinfector, that cleans and thermally reprocesses flasks, pipettes, test tubes, and vials inside a crevice-free stainless steel chamber. It combines application-specific wash programs, an integrated water softener, a demineralised-water final rinse, and DryPlus hot-air drying so labware exits each cycle clean and dry. The [U DC5 LAN] designation reflects its undercounter configuration, DC5 suction lance dispensing, and integrated LAN connectivity.

What laboratory applications is the PLW 8683 CD used for?

The PLW 8683 CD is used for reprocessing reusable laboratory glassware and plasticware across research, pharmaceutical, and quality-control laboratories, with dedicated programs for injector glassware, pipettes, organic and inorganic residues, agar, oil, and plastics. Its capacity supports up to 128 flasks, 98 pipettes, 196 test tubes, or 196 vials per cycle, making it suited to media preparation, analytical cleanup, and general labware turnaround. The integrated hot-air drying stage prepares glassware for immediate reuse without manual towel drying.

Does the PLW 8683 CD require special water and electrical connections?

Yes, the PLW 8683 CD connects to one hot water supply and one demineralised (DI) water supply, operates within a flow pressure of 200–1000 kPa, and drains through a DN 22 pump with a maximum delivery head of 100 cm. In its standard configuration it uses an 8.5 kW heater with a 9.3 kW total rated load on a 16 A fuse, and an optional lower-power voltage variant rated at 2.5 kW heating and 3.3 kW total load is available for facilities with different electrical infrastructure. Site utilities should always be verified against the official Miele installation documentation before purchase.

What is the difference between an undercounter washer like the PLW 8683 CD and a freestanding laboratory washer?

An undercounter washer such as the PLW 8683 CD installs beneath a standard benchtop to conserve floor space, which suits labs integrating a washer into an existing casework run, while freestanding units typically offer larger chambers for higher-volume central wash rooms. The right choice depends on throughput, available space, and workflow layout, a trade-off explained further in this undercounter versus freestanding laboratory washer comparison. Laboratories comparing Miele models can also review the freestanding-style Miele PG 8593 laboratory glassware washer to weigh capacity against footprint.

Is the PLW 8683 CD compliant with laboratory washer-disinfector standards?

The PLW 8683 CD is designed and tested in accordance with EN ISO 15883-1 for washer-disinfectors, along with EN 61010-1, EN 61010-2-040, and EN 61326-1, and carries IP 21 protection under EN 60529. Its Hygiene 93/10 program and 93 °C maximum final rinse temperature support thermal disinfection workflows that rely on defined time-at-temperature parameters. Facilities with additional program-specific compliance requirements should confirm suitability against their own validation protocols and the manufacturer’s documentation.

Does the PLW 8683 CD include a drying system?

Yes, the PLW 8683 CD includes the DryPlus hot-air drying unit, which draws air through an H14 HEPA filter rated at 99.995% efficiency and circulates heated air at up to 60 m³/h with a drying time adjustable from 0 to 120 minutes. This integrated drying removes residual moisture from narrow-neck vessels and injector glassware so items are ready for immediate reuse. The HEPA filter has a rated service life of 200 hours.
