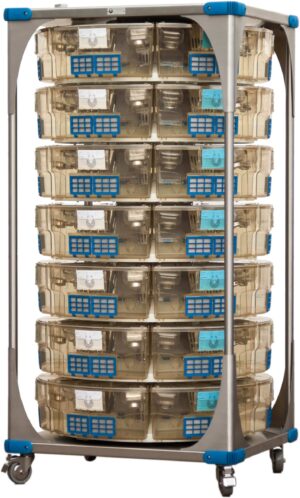

Animal Care Systems Optirat GenII Rack

Ideal housing and superior air quality, the Optirat GenII IVC rack system is built on the same structural frame as Optimice and employs the same motor-free, exhaust-ventilated technology as all Animal Care Systems caging systems.

This rodent cage is large enough to accommodate rats comfortably and provides superior visibility, thanks to the wide front face. Like our other carousel-style racks, this rack system for rats and other small rodents can be positioned against a wall or next to another rack. The rotating carousel provides easy cage access without moving racks or forming large aisles. Rotate the carousel to bring the cages to you.

Clear

Cage Tops *

Watering *

Feeders *

Cage Accessories

Optional HVAC Accessories

Rack Accessories

Cage Parts

Material Handling

Description

Features:
• Ultra-high density
• Large enough to house rats, hamsters, gerbils, deer mice, and wild-caught rodents
• Also suitable for invertebrates
• Integrated cage card holder
• Flat-bottom cage bases
• Fits through standard 36″ door with cages removed
• Accessory components are available to support a variety of specialized models
Same operating principles as all Animal Care Systems racks:
• One-­pass, low-­velocity airflow with total volume air changes
• No electric motors, no energy consumption
• No noise or vibration
• Prevents release of odors and allergens in the animal room
• Superior cage visibility
• Fast and easy cage filter replacement
• Easy and low cost to maintain

Additional information

Model Configurations

Rack-Mounted Avidity/Edstrom Valves, includes polysulfone cages, Rack-Mounted SE Lab Group Valves, includes polysulfone cages, Rack-Mounted Quick Disconnect Avidity/Edstrom valves, Rack-Mounted Quick Disconnect SE Lab Group valves, Cage-Mounted Avidity/Edstrom Valves, includes polysulfone cages, Cage-Mounted SE Lab Group Valves, includes polysulfone cages

• Rack Dimensions with Cages: 39.7 in. (1008 mm) L x 39.0 in. (991 mm) W x 76.5 in. (1943 mm) H
• Rack Only Dimensions: 39.7 in. (1008 mm) L x 33.7 in. (856 mm) W x 76.5 in. (1943 mm) H
• Airflow Requirements per Rack: 55 CFM (26 liters/sec) minimum; 82 CFM (39 liters/sec) recommended
• Rack Weight: 550 lbs(250 kg) with cages
• Rack Casters: Four 4-inch swivel casters; two locking, two non-locking
• Rack Capacity: 42 cage stations

5 years parts and labor
