Description
• Energy savings with an optimized refrigeration system and insulation system
• Permanently lubricated cooling fan for longevity and safe operation
• Hydrocarbon refrigerant is extremely efficient and environmentally friendly
• Precise temperature uniformity with a finned evaporator and double fan system
• Low noise
• Multiple malfunction alarms, including high/low temp, power failure, door ajar, low battery and etc
• Microprossor control with a digital display and temperature adjustment increment of 0.1 °C
• Forced air cooling and optimized air distribution for excellent temperature precision
• Ergomonic designs, USB and self-closing door
Technical Data

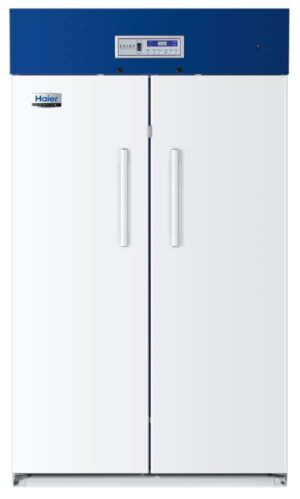

• Cabinet Type: Upright, Double Glass Door or Double Solid Door
• Climate Class: N
• Cooling Type: Forced Air Cooling
• Defrost Mode: Auto
• Refrigerant: HC
• Sound level (dB(A)): 43-45
Performance
• Temperature Range (°C): 2-8
Control
• Controller: Microprocessor
• Display: LED
Electrical Data
• Power Supply (V/Hz): 220~240/50/60 – 115/60
• Power (W): 700 – 850
• Electrical Current (A): 3.5 – 7.5
Dimensions
• Capacity (L/Cu.Ft): 890/31.4
• Net/Gross Weight kg (approx): 227/279
• Net/Gross Weight lbs (approx): 500.4/615.1
• Interior Dimension (W*D*H) mm: 1030*590*1425
• Interior Dimension (W*D*H) in: 40.6*23.2*56.1
• Exterior Dimension (W*D*H) mm: 1130*755*1980
• Exterior Dimension (W*D*H) in: 44.5*29.7*78.0
• Packing Dimension (W*D*H) mm: 1250*850*2130
• Packing Dimension (W*D*H) in: 49.2*33.5*83.9
• Container load (20’/40’/40’H): 8/18/18
Alarms
• High/Low Temperature: Y
• Remote Alarm: Y
• Power Failure: Y
• Sensor Error: Y
• Low Battery: Y
• Door Ajar: Y
Accessories
• Caster: Y
• Foot: Y
• Porthole: Y
• Shelves/Inner doors: 12/-
• USB Interface: Optional
• Printer: Optional
• Temperature Reader: Optional
• Certi?cation: CE – UL
